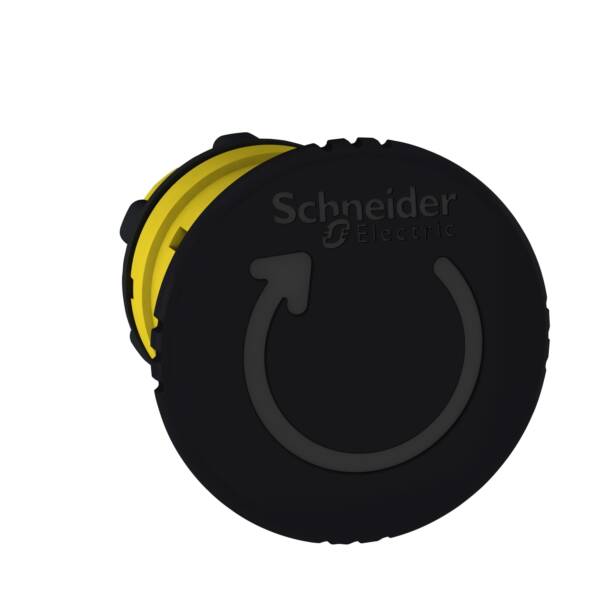

This Harmony XB5, general safe stop 40mm mushroom black head operates with latched turn to release mechanism. This 40mm mushroom shaped push-button head is used as general safe-stop head, ideal for situations where quick actions are required for a process or machine to to function correctly. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push-button shape, makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.

Brand

Schneider Electric

Range

Harmony XB5

Part No

ZB5AS842Y

Weight (kg)

0.04 kg

Type

Harmony XB5

Spring-return

FALSE

Colour front ring

Other

Material front ring

Plastic

Hole diameter

22.5

Diameter cap

30

Suitable for emergency stop

TRUE

Switching function latching

TRUE

Unlocking method

Turn-release

Type of button

High

Construction type lens

Round

Colour button

Black

With front ring

TRUE

Suitable for illumination

FALSE

Degree of protection (IP)

IP66

Degree of protection (NEMA)

Other
