Harmony, Interface plug-in relay pre-assembled, 16 A, 1 CO, with LED, with protection circuit, 24 V DC - Schneider Electric - RSB1A160BDPV
Harmony, Interface plug-in relay pre-assembled, 16 A, 1 CO, with LED, with protection circuit, 24 V DC - Schneider Electric - RSB1A160BDPV

RSB1A160BDPV

Harmony, Interface plug-in relay pre-assembled, 16 A, 1 CO, with LED, with protection circuit, 24 V DC - Schneider Electric - RSB1A160BDPV

Control

List Price £17.48 +VAT

Our Price £13.11 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

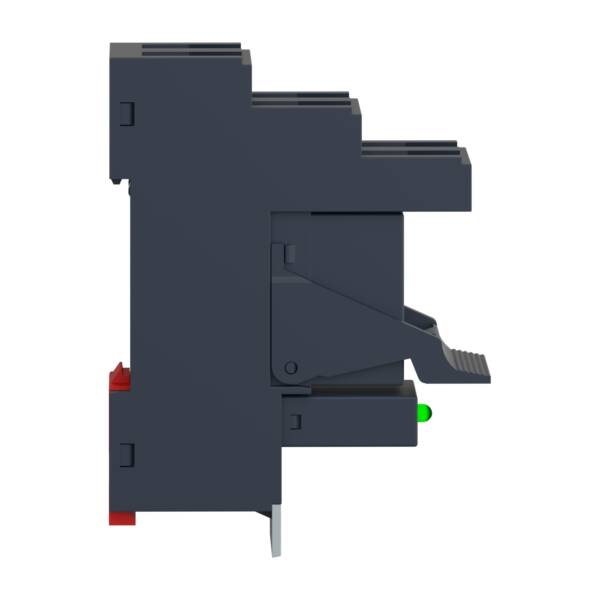

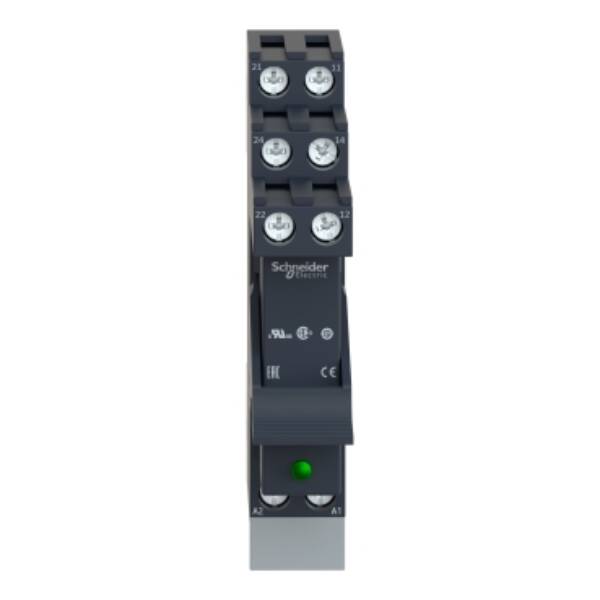

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 16A, 24Vdc, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RSB1A160BDPV
Weight (kg)
0.05 kg
Type
Harmony Electromechanical Relays
Width
16
Type of electric connection
Plug-in connection
Drive, switching attitude
Mono stable
With forced-guided contacts
FALSE
Nominal current
16
With LED indication
TRUE
Drive, polarization
Polarity free
Type of switch contact
Other
Depth
61
Complete with socket
TRUE
Number of contacts as change-over contact
1
Rated control supply voltage Us at DC
0…24 V
Voltage type for actuating
DC
Height
79
Degree of protection (IP)
IP20
With detachable clamps
TRUE

Datasheet for RSB1A160BDPV - Harmony, Interface plug-in relay pre-assembled, 16 A, 1 CO, with LED, with protection circuit, 24 V DC - Schneider Electric - RSB1A160BDPV
