graphic display unit - 240 x 160 pixels - Schneider Electric - TMH2GDB

graphic display unit - 240 x 160 pixels - Schneider Electric - TMH2GDB

TMH2GDB

graphic display unit - 240 x 160 pixels - Schneider Electric - TMH2GDB

Automation

~~List Price £117.58 +VAT~~

Our Price £94.06 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

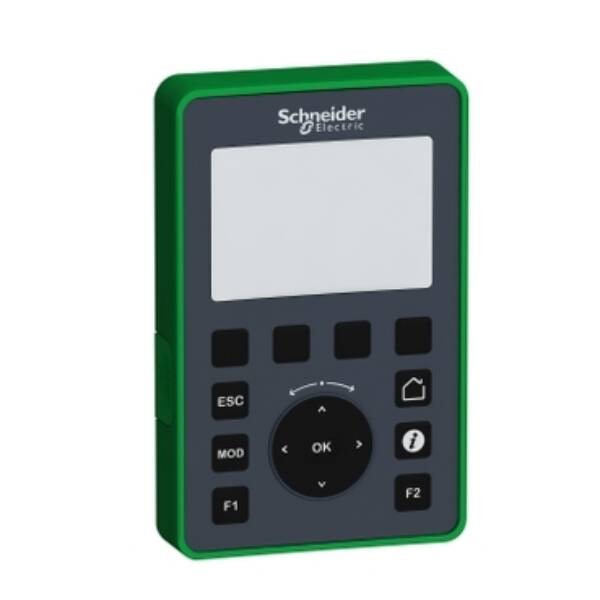

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This graphic display unit features a backlit colour STN LCD display. The display supports 240 x 160 pixels of resolution with monochrome display colour. The unit is equipped with RJ45 for communication and power supply. The keypad contains 4 configurable keys and 6 keys for navigation. It is an IP20 and IP65 rated product. Its dimensions are 80mm (Width) x 63mm (Depth) x 126mm (Height). It weighs 0.17kg. This product is certified by CE and CULus. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This display is compatible with Modicon M221 logic controller. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Brand: Schneider Electric
Range: Logic Controller - Modicon M221
Part No: TMH2GDB
Weight (kg): 0.16 kg
Type: Logic Controller - Modicon M221
With message indication: TRUE
Supporting protocol for SERCOS: FALSE
Number of function buttons, programmable: 4
Number of HW-interfaces other: 1
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): TRUE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: STN
Number of password levels: 1
With printer output: FALSE
Process default value (input) possible: FALSE
With recipes: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Degree of protection (IP), front side: IP65/IP67
Radio standard UMTS: FALSE
Number of online languages: 6
Additional software components, loadable: TRUE
Touch technology: Other
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: TRUE
Operation temperature: -15…50 °C
Screen diagonal: 2.75
Number of system buttons: 6
Built-in depth: 63
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for PROFIBUS: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for TCP/IP: FALSE
Number of pixels, horizontal: 240
Supporting protocol for KNX: FALSE
With colour display: FALSE
Supporting protocol for CAN: FALSE
Number of colours of the display: 1
Supporting protocol for INTERBUS: FALSE
IO link master: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: TRUE
Suitable for safety functions: FALSE
Width of the front: 126
Supporting protocol for MODBUS: FALSE
Supporting protocol for Data-Highway: FALSE
Height of the front: 80
Supply voltage DC: 5 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: TRUE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of pixels, vertical: 160

Datasheet for TMH2GDB - graphic display unit - 240 x 160 pixels - Schneider Electric - TMH2GDB

Download
