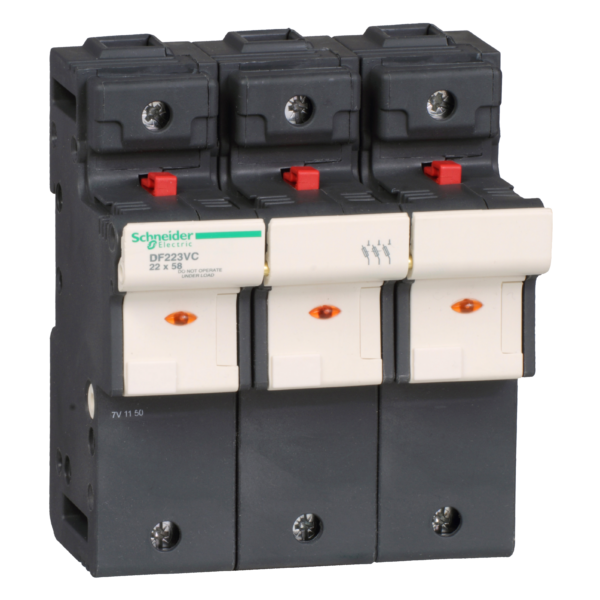

Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator - Schneider Electric - DF223VC
Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator - Schneider Electric - DF223VC

DF223VC

Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator - Schneider Electric - DF223VC

Automation

List Price £71.32 +VAT

Our Price £53.49 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides blown fuse indication by LED. Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Brand
Schneider Electric
Range
TeSys DF, LS1/GK1
Part No
DF223VC
Weight (kg)
0.56 kg
Type
TeSys DF, LS1/GK1

Datasheet for DF223VC - Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm, blown fuse indicator - Schneider Electric - DF223VC
