FLUSH MOUNTED RED PROJECTING PUSHBUTTON 1NC SCREW CLAMP - Schneider Electric - XB5FL42
FLUSH MOUNTED RED PROJECTING PUSHBUTTON 1NC SCREW CLAMP - Schneider Electric - XB5FL42

XB5FL42

FLUSH MOUNTED RED PROJECTING PUSHBUTTON 1NC SCREW CLAMP - Schneider Electric - XB5FL42

Automation

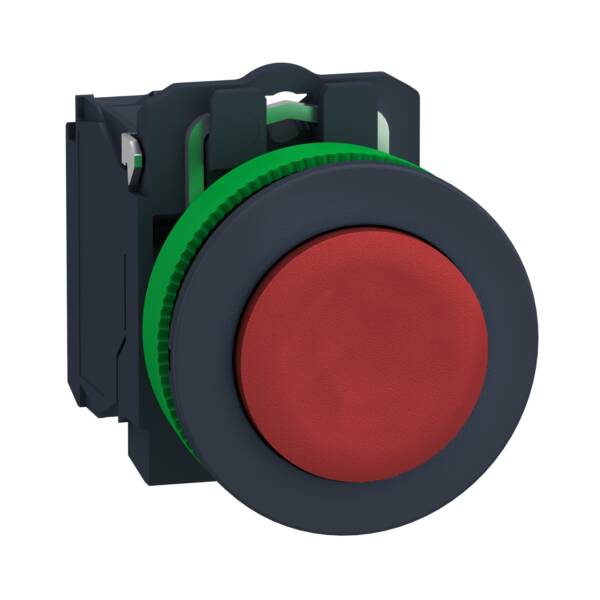

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is projecting push. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 38 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
List Price £13.80 +VAT

Our Price £10.35 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days

Specifications

Brand
Schneider Electric
Type
Harmony XB5
Range
Harmony XB5
Part No
XB5FL42
Weight (kg)
0.05 kg

Datasheet for XB5FL42 - FLUSH MOUNTED RED PROJECTING PUSHBUTTON 1NC SCREW CLAMP - Schneider Electric - XB5FL42
