TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K0610BW3

TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K0610BW3

LP4K0610BW3

TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K0610BW3

Control

~~List Price £49.46 +VAT~~

Our Price £37.10 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

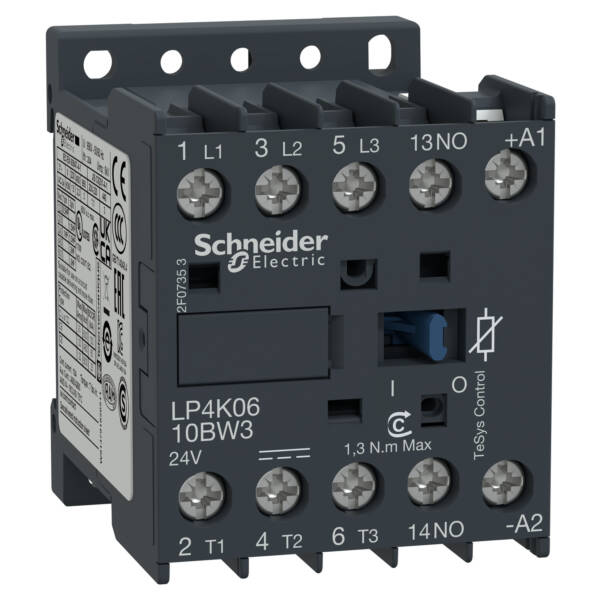

TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LP4K0610BW3
Weight (kg): 0.22 kg
Type: TeSys K contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 2.2
Number of main contacts as normally open contact: 3
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Rated operation current Ie at AC-1, 400 V: 20
Rated operation current Ie at AC-4, 400 V: 4
Rated control supply voltage Us at DC: 24 V
Voltage type for actuating: DC
Rated operation current Ie at AC-3, 400 V: 6
Rated operation power at AC-4, 400 V: 1.5

Datasheet for LP4K0610BW3 - TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil - Schneider Electric - LP4K0610BW3

Download
