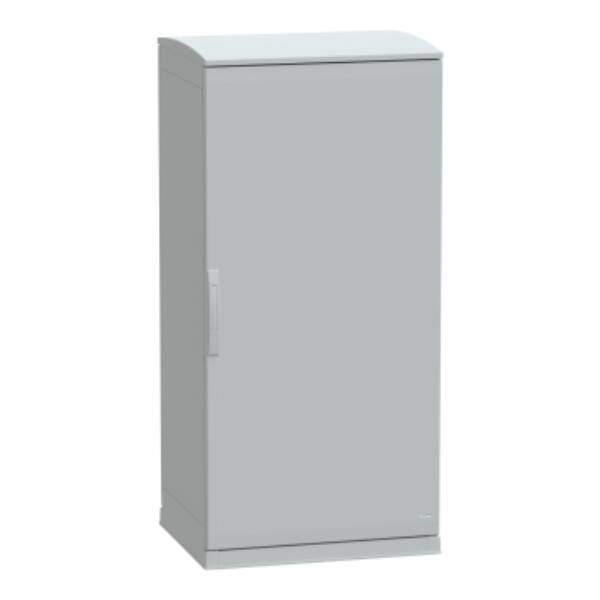

"This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It has a nominal height of 1500mm, width of 750mm, and depth of 620mm" "The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, both indoor and outdoor" "It comes in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, one canopy, and one plinth" "The door can be opened up to 180° from either the right or left side, and has a four-point lock with a handle that has a 5mm double-bar insert" "The rear panel and door are removable for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure is designed to offer robust protection against fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard, and has an IK10 rating (IEC 62262) for high resistance to impacts" "It is rated IP44 (IEC 60529) for high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLAZT1576G

Weight (kg)

48.00 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1500

Degree of protection (IP)

IP44

Pitched roof

TRUE

Floor standing wall model

TRUE

Colour

Grey

Width

750

Intermediate mounting

FALSE

Surface finishing

Untreated

Material

Plastic

Number of doors

1

Suitable for outdoor set-up

TRUE

Corner model

FALSE

Number of locks

1

Material quality

Other

Suitable for wall mounting

FALSE

Depth

620

Suitable for wall built-in

TRUE

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

1138

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

Other

Pole fastening

FALSE

With rear door

FALSE

Max. permissible load of the enclosure according to IEC 62208

1652

Max. permissible load of the door(s) according to IEC 62208

324
