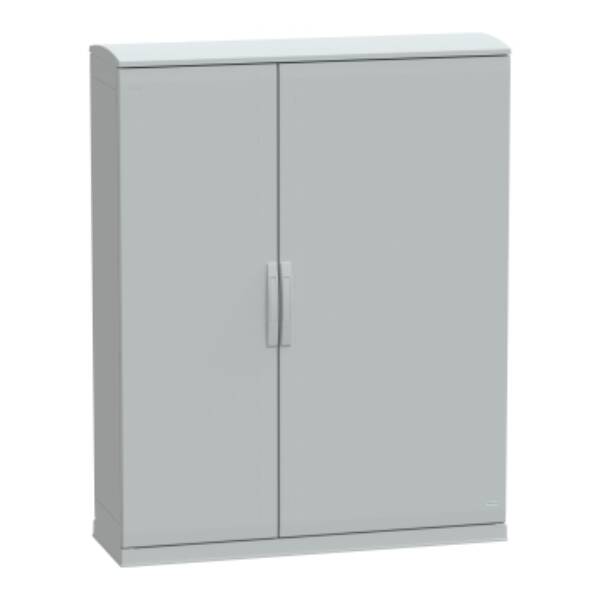

Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500x1250x420 IP44 - Schneider Electric - NSYPLAZT15124G
Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500x1250x420 IP44 - Schneider Electric - NSYPLAZT15124G

NSYPLAZT15124G

Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500x1250x420 IP44 - Schneider Electric - NSYPLAZT15124G

Enclosures

List Price £2,177.26 +VAT

Our Price £1,632.95 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
"This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It has nominal dimensions of 1500mm in height, 1250mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass" "This material offers durability and resistance to harsh environments, both indoor and outdoor" "It is available in grey (RAL 7035) color and consists of two side parts, two plain front doors, two rear panels, one canopy, and one plinth" "The doors can be opened up to 180° from the right and left sides, providing easy access to the equipment inside" "The doors come with a four-point lock and a handle that has a 5mm double-bar insert" "The doors, rear panels, and canopy are all removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It is rated IK10 (IEC 62262), indicating high resistance to impacts" "It is also rated IP44 (IEC 60529), providing high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLA
Part No
NSYPLAZT15124G
Weight (kg)
95.56 kg
Type
Thalassa PLA

Datasheet for NSYPLAZT15124G - Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500x1250x420 IP44 - Schneider Electric - NSYPLAZT15124G
