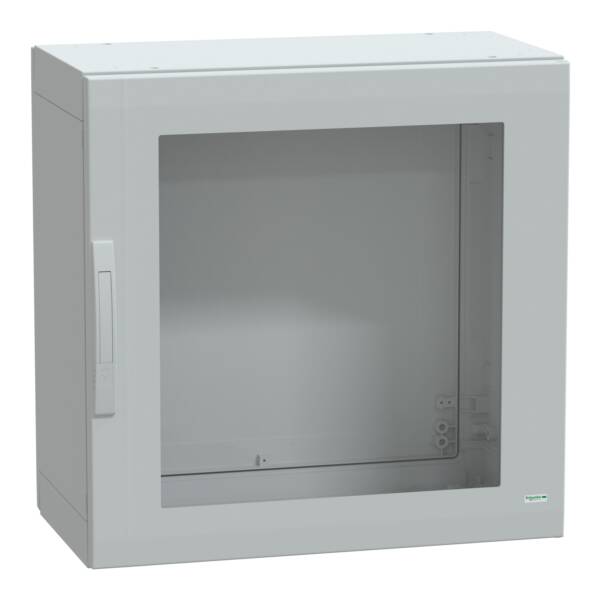

"This PLA is a multi-purpose, floor-standing enclosure suitable for various applications" "It has a nominal height of 750mm, width of 750mm, and depth of 420mm and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035) and consists of one top part, one bottom part, two side parts, one rear panel, and one door" "The door is designed to open up to 120° from either the right or left side and is equipped with a two-point lock with a 5mm double-bar insert" "The rear panel and door are removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard and is certified to UL 508 A" "It also has an IK08 rating (IEC 62262) and is rated IP65 (IEC 60529) for high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL/cUL listed and DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA774TG

Weight (kg)

27.06 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

TRUE

Wall fastening possible

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

FALSE

Height

750

Degree of protection (IP)

IP65

Pitched roof

FALSE

Colour

Grey

Width

750

Surface finishing

Untreated

Material

Plastic

Number of doors

1

Suitable for outdoor set-up

TRUE

Number of locks

1

Material quality

Polyester

Wall build in

FALSE

Depth

420

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4

Pole fastening

FALSE

With backside door

FALSE

Floor installation possible

TRUE
