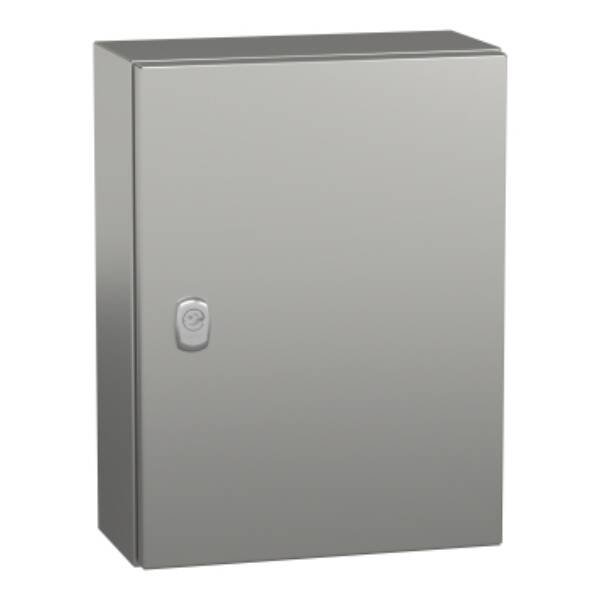

"PanelSet S3X stainless 316L, Scotch Brite® finish, H400xW300xD150 mm." - Schneider Electric - NSYS3X4315H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H400xW300xD150 mm." - Schneider Electric - NSYS3X4315H

NSYS3X4315H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H400xW300xD150 mm." - Schneider Electric - NSYS3X4315H

Enclosures

~~List Price £819.74 +VAT~~

Our Price £614.81 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"PanelSet S3X is a multi-purpose stainless steel 316L wall-mounting enclosure designed to withstand harsh environments" "It has a nominal height, width and depth of 400mm, 300mm and 150mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a 3mm double-bar lock insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 4,966kg" "It is certified with CAN/CSA 22 and UL 508 type A and has an IK10 and IP66 rating, making it resistant to high impact and dust and water respectively"

Brand: Schneider Electric
Part No: NSYS3X4315H
Weight (kg): 4.97 kg
Couplable: FALSE
With mounting plate: FALSE
Freestanding: FALSE
With glazed door: FALSE
With cover: FALSE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Transparent cover: FALSE
Height: 400
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: FALSE
Colour: Stainless steel
Width: 300
Intermediate mounting: FALSE
Surface finishing: Other
Number of doors: 1
Material: Stainless steel
Suitable for outdoor set-up: FALSE
Corner model: FALSE
Number of locks: 1
Suitable for wall mounting: TRUE
Material quality: Stainless steel 316 (V4A)
Suitable for wall built-in: FALSE
Depth: 150
Pre-stamping: FALSE
With door: TRUE
Max. permissible load of the mounting plate according to IEC 62208: 250
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
With rear door: FALSE
Pole fastening: FALSE
Max. permissible load of the enclosure according to IEC 62208: 50
Max. permissible load of the door(s) according to IEC 62208: 50

Datasheet for NSYS3X4315H - "PanelSet S3X stainless 316L, Scotch Brite® finish, H400xW300xD150 mm." - Schneider Electric - NSYS3X4315H

Download
