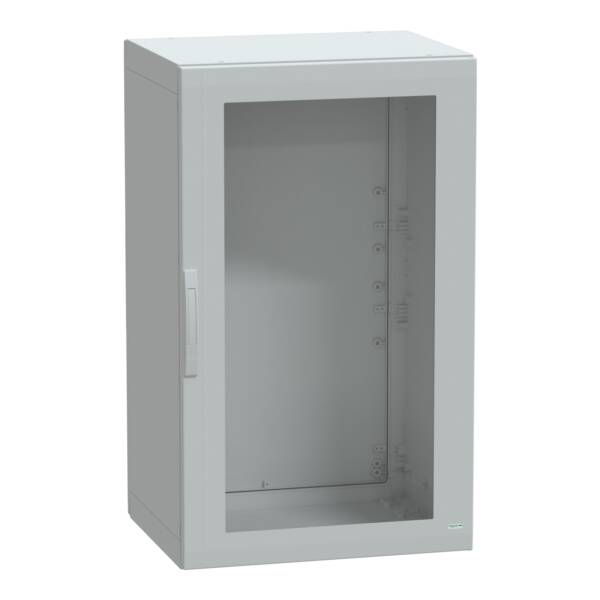

"This PLA is a versatile, floor-standing enclosure suitable for multiple purposes" "It is 1250mm in height, 750mm in width, and 620mm in depth, and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) and consists of two side parts, one rear panel, and one transparent front door" "The door can open up to 120° from either the right or left side, allowing easy access to the equipment inside" "The door is secured with a four-point lock and a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes" "The enclosure is certified by DNV Marine, UL/cUL listed, and Veritas, and meets the UL 508 A and IEC 62208 standards" "It offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The NEMA degree of protection is NEMA 3, NEMA 3S, NEMA 13, NEMA 5, NEMA 1, NEMA 12, NEMA 2, NEMA 3X, and NEMA 3R" "It is also IK08 rated (IEC 62262) and IP65 rated (IEC 60529), providing high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA1276TG

Weight (kg)

47.00 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1250

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

750

Intermediate mounting

FALSE

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Number of locks

1

Suitable for outdoor set-up

TRUE

Corner model

FALSE

Suitable for wall mounting

TRUE

Material quality

Polyester (PET)

Depth

620

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

932

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

1383
