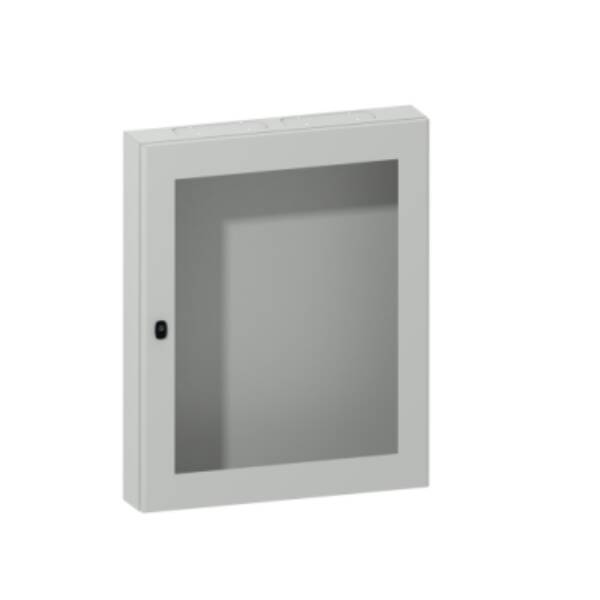

This S3DM is a wall-mounting modular distribution enclosure designed for installation of modular chassis DLM It is made of steel body and steel security glass door The enclosure has nominal dimensions of 1000mm height, 800mm width, and 150mm depth The doors are reversible up to 120° and secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish The enclosure comes with two cable gland plates (top and bottom), one body, one door, one 3mm double locking system, and one document holder The enclosure is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas) The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL It is designed for easy accessibility from the front This compact enclosure is BV, DNV, GL, LR, c. UL certified. This compact enclosure is BV, DNV, GL, LR, c. UL certified.

Brand

Schneider Electric

Part No

NSYS3DM10815T

Weight (kg)

30.00 kg

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

Suitable for metrical mounting

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1000

Degree of protection (IP)

IP66

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

800

Intermediate mounting

FALSE

Surface finishing

Powder coating

Number of doors

1

Material

Steel

Number of locks

1

Corner model

FALSE

Suitable for outdoor set-up

FALSE

Suitable for wall mounting

TRUE

Material quality

Other

Depth

150

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

250

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

With rear door

FALSE

Pole fastening

TRUE

Max. permissible load of the enclosure according to IEC 62208

50
