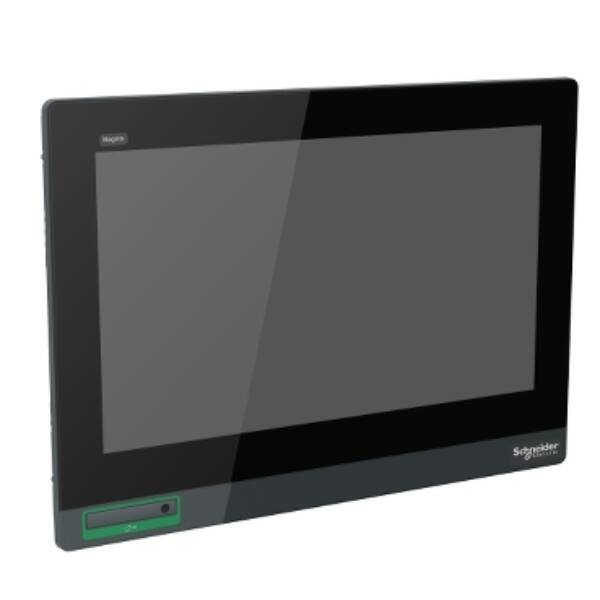

The touch screen display features 15.6inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 414mm (width) x 69mm (depth) x 295mm (height). It weighs 5kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.

Brand

Schneider Electric

Range

Harmony GTU

Part No

HMIDT752

Weight (kg)

5.47 kg

Type

Harmony GTU

Supporting protocol for SERCOS

FALSE

Radio standard GPRS

FALSE

Type of display

TFT

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Degree of protection (IP), front side

IP67

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Touch technology

Resistive touch

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

FALSE

Screen diagonal

15

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Colour display

TRUE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for Modbus

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Supporting protocol for LON

FALSE

Supporting protocol for SUCONET

FALSE
