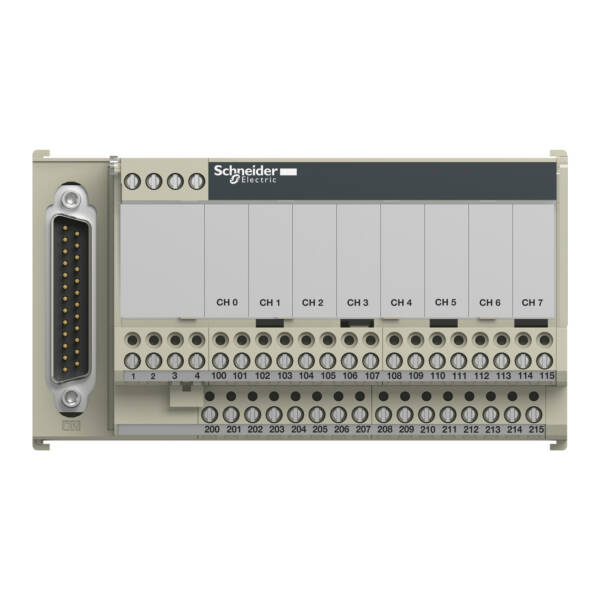

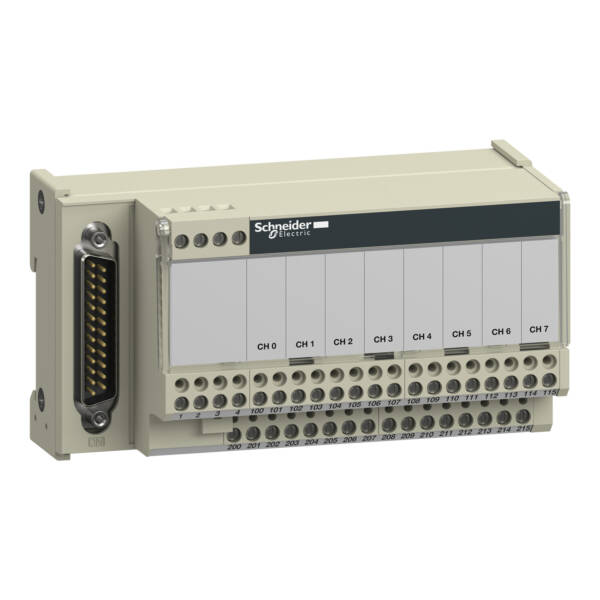

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This product consists in a connection sub-base for passive distribution of 8 channels. It is a sub base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is furnished with screw type terminals for electrical connection and 25-way D-Sub (DB-25) connection to PLC. It is an IP20 rated product. It weighs 0.29kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810, BMEAHI0812 and BMXAMO0802. It is delivered in 1 package (PCE type). The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7CPA02

Weight (kg)

0.30 kg

Type

Advantys Telefast ABE 7

Number of sensor-/actuator-slots

1

Connection for NPN-sensors

FALSE

Number of poles sensor/actuator slots

8

Colour housing

Grey

Thread sleeves sensor/actuator slots

Other

Material of contact surface

Other

With potential separation

FALSE

Material contact body

Other copper alloys

Height

70

Degree of protection (IP)

IP20

Connectable conductor cross section

0.09…2.5 mm²

Width

125

Diameter contact female

2.5

Pollution degree

2

With LED indication

FALSE

Number of channels per connector slot

8

Material housing

Plastic, metallized

Explosion safety category for dust

None

Depth

67

Explosion safety category for gas

None

Length of the preassembled cable

3

Material insulation body

Other

Cable length configurable

TRUE

Cable outer diameter for cable gland

0.09…2.5 mm

Type of branches for sensor-/actuator cables

Other

Fix cable version suitable for cable guide chain

FALSE

Operation temperature

0…60 °C
