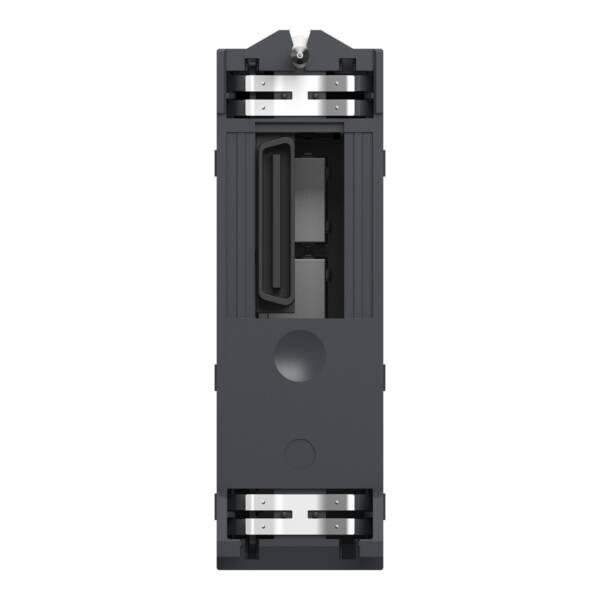

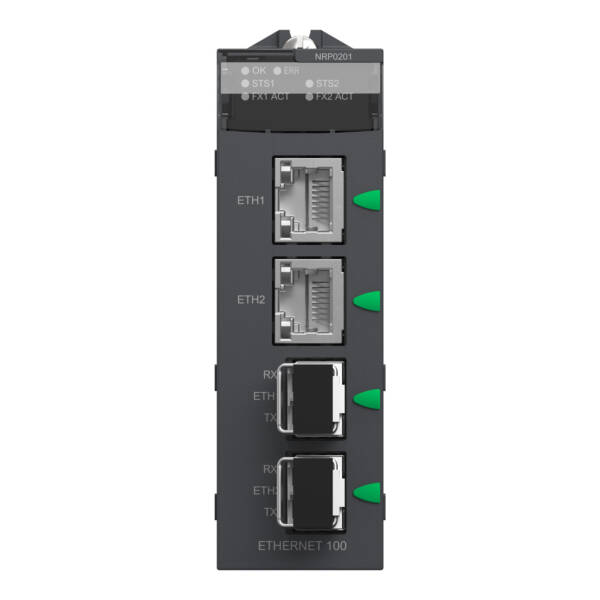

This fiber converter is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). It supports single mode and hot swap function. It is a fibre optic repeater with a current of 200mA and a rated voltage of 24V. It offers 1310nm wavelength. This product is robust, high quality and based on the latest innovative technology. The optic repeater has 2 RJ45 with 100BASE-TX port, 2 fibre optic with 100BASE-FX port Ethernet ports with 0m to 15000m operating distance. It is an IP20 rated product. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height) and weighs 203g. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with the entire range of Modicon controllers. The repeater is linked to CRA drop adapters by means of Ethernet Interlink cables. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon M340

Part No

BMXNRP0201

Weight (kg)

0.25 kg

Type

Modicon M340

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

2

SIL according to IEC 61508

None

With optical interface

TRUE

Transmission rate

100000

With potential separation

TRUE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

100

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

32

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

86

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Type of data transmission

Other

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

TRUE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces industrial Ethernet

2
