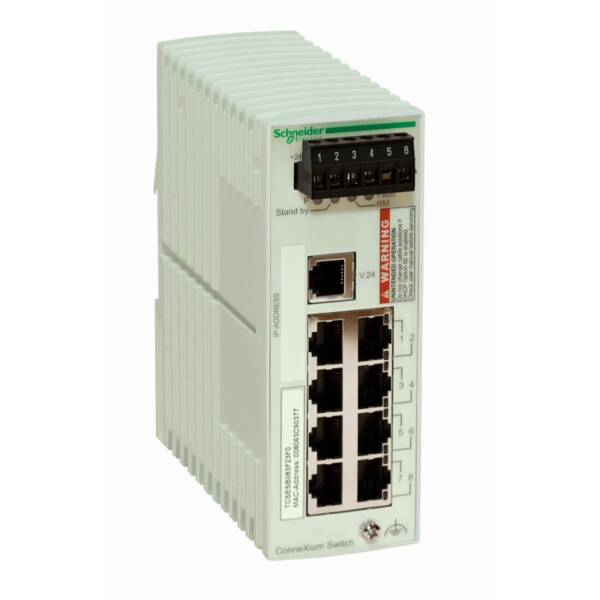

This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.

Brand

Schneider Electric

Range

Modicon Networking

Part No

TCSESB083F23F0

Weight (kg)

0.41 kg

Type

Modicon Switch

Number of ports 10/100 Mbps RJ45

8

Redundant power supply

FALSE

Max. power consumption

6

Manageable

TRUE

Height

131

Degree of protection (IP)

IP20

Compatible with Grade2TV according to XP-C 90-483

FALSE

Compatible with Grade3TV according to XP-C 90-483

FALSE

Width

47

Layer 2

FALSE

Layer 3

FALSE

Mounting method

DIN rail (top hat rail)

Depth

111

Power over Ethernet (PoE)

Other

Ethernet

FALSE
