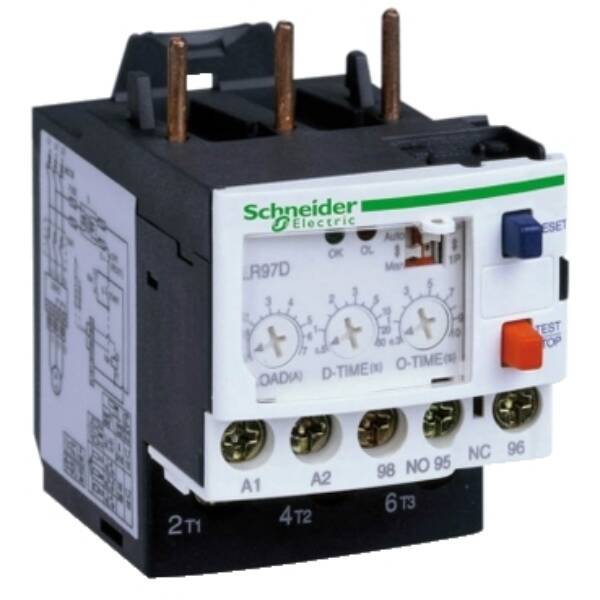

TeSys LR97D electronic overcurrent relay, 7A/690V, to be supplied with 24V AC/DC, for protection of motors with a rated current 1.2-6A. It provides 3 dials to adjust the protection, LOAD (1.2-7A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when the current is higher than 3 x LOAD during more than 0.5sec in steady state and if there is a missing phase during more than 3sec. Settings also include selectors for 1-phase/3-phase motors and manual/automatic reset, the device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO/NC for fault signaling. Settings can be locked by sealing the transparent cover. For direct attachment to the bottom terminals of a 3-phase contactor LC1D09-D38, with screw clamp terminals on bottom, the separate mounting from the contactor is possible using the terminal block LAD7B106 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC, EAC), compliant RoHs/Reach.

Brand

Schneider Electric

Range

TeSys Deca electronic relays

Part No

LR97D07B

Weight (kg)

0.18 kg

Type

TeSys Deca electronic relays

Type of electrical connection of main circuit

Screw connection

Width

45

Rated control supply voltage AC 50 Hz

24 Volt

Rated control supply voltage AC 60 Hz

24 Volt

Release class

Adjustable

Number of auxiliary contacts as change-over contact

1

Mounting method

Direct attachment

Operating voltage AC 50 Hz

24 Volt

Depth

67.5

Operating voltage AC 60 Hz

24 Volt

Operating voltage DC

24 Volt

Reset function automatic

TRUE

Reset function input

TRUE

Voltage type (operating voltage)

AC/DC

External power supply required

FALSE

Voltage type for actuating

AC/DC

Height

64.5

Rated control supply voltage DC

24 Volt

Adjustable current range

1.2…7 Ampere

Reset function push-button

TRUE
