NSYDLP133G

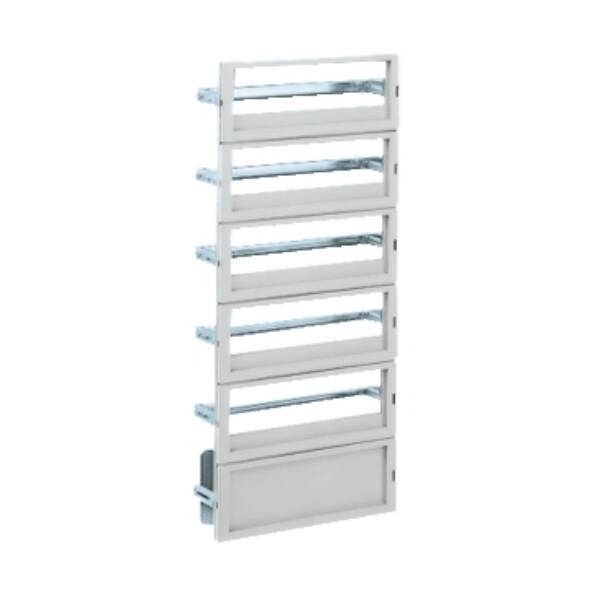

DLP modular dist chassis 133modules(18mm) insulating material for PLA H1250xW500 - Schneider Electric - NSYDLP133G

Enclosures

~~List Price £438.17 +VAT~~

Our Price £328.63 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

"DLP chassis for Thalassa PLA and Thalassa PHD enclosures" "The chassis is to be fixed on front of enclosure by fixing elements with supports location" "The width is 500mm" The height is 1250mm Number of 18mm modules is 133 (1 module = 2 steps = 18 mm) Number of horizontal rows is 7 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing and chassis structure and rails are made from galvanised steel The front has a grey (RAL 7035) color Number of cut-outs is 7 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 7 front panels with 35mm DIN rails IP2x not respected when chassis is mounted at 67mm "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand: Schneider Electric
Range: PanelSeT PLA
Part No: NSYDLP133G
Weight (kg): 4.00 kg
Type: Thalassa PLA
Width: 500
Material: Other
Height: 1250
Depth: 135
Type of accessory: Adapter kit
