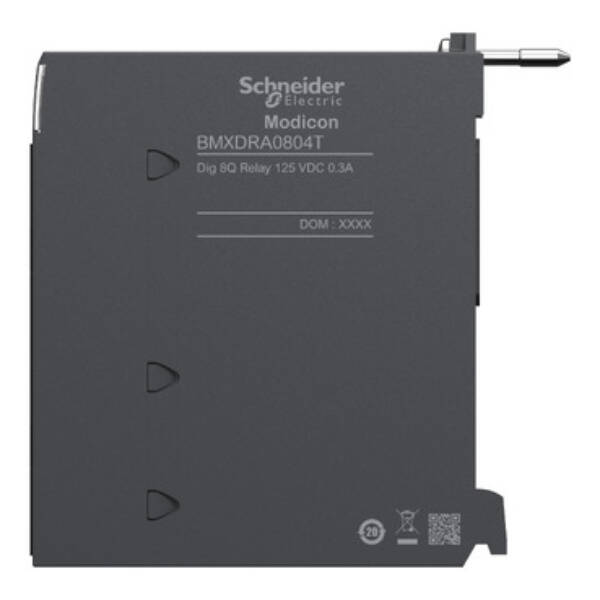

discrete output module X80 - 8 outputs - 100...150 V DC - Schneider Electric - BMXDRA0804T

discrete output module X80 - 8 outputs - 100...150 V DC - Schneider Electric - BMXDRA0804T

BMXDRA0804T

discrete output module X80 - 8 outputs - 100...150 V DC - Schneider Electric - BMXDRA0804T

Automation

~~List Price £343.07 +VAT~~

Our Price £274.46 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 100V DC to 150V DC, a typical current consumption of 61mA at 3.3V DC, 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000 cycles and mechanical durability of 20 million cycles. It is an IP20 rated product. It weighs 0.145kg. It is suitable for extended temperature, medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand: Schneider Electric
Range: Modicon X80 I/Os
Part No: BMXDRA0804T
Weight (kg): 0.20 kg
Type: Modicon X80 I/Os
Input current at signal 1: 0.65
Type of electric connection: Plug-in connection
Output, current: 0.3
Voltage type of supply voltage: DC
Short-circuit protection, outputs available: TRUE
SIL according to IEC 61508: None
Digital inputs configurable: FALSE
Type of digital output: Relay
Digital outputs configurable: TRUE
Appendant operation agent (Ex ia): FALSE
Performance level acc. EN ISO 13849-1: None
Permitted voltage at output: 100…150 V
Permitted voltage at input: 100…150 V
Type of voltage (input voltage): DC
Height: 100
Time delay at signal exchange: 1.2 ms
Appendant operation agent (Ex ib): FALSE
Category according to EN 954-1: 1
Type of output voltage: DC
Width: 33
Suitable for safety functions: FALSE
Redundancy: FALSE
Number of digital outputs: 8
Explosion safety category for dust: None
Supply voltage DC: 100…150 V
Depth: 150
Explosion safety category for gas: None

Datasheet for BMXDRA0804T - discrete output module X80 - 8 outputs - 100...150 V DC - Schneider Electric - BMXDRA0804T

Download
