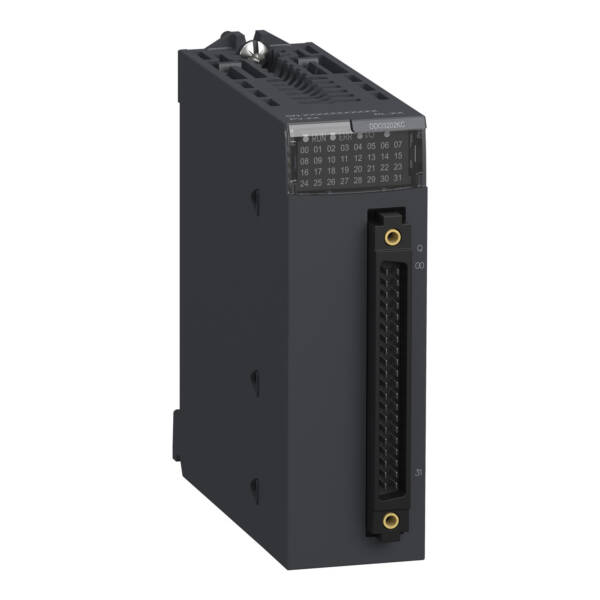

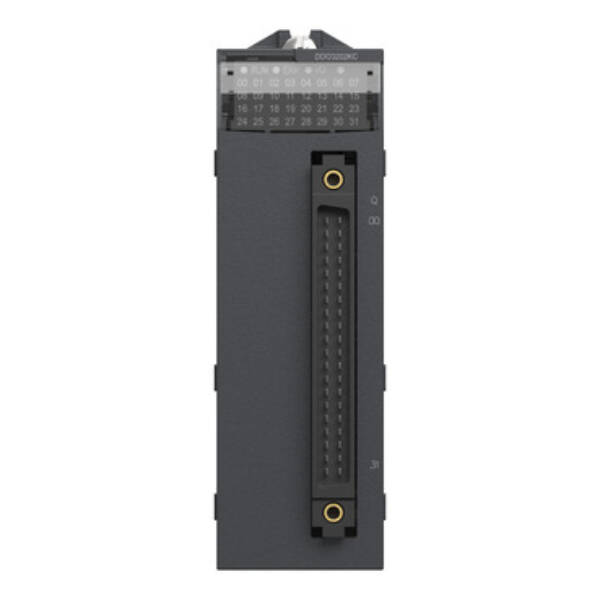

"This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 32 output channels and it is supplied with 24V DC (positive)." "Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from 0°C to +60°C/32°F to 140°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 289176 hours of MTBF." "This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDDO3202KC

Weight (kg)

0.15 kg

Type

Modicon X80 I/Os

Type of electric connection

Screw connection

Output, current

0.1

Voltage type of supply voltage

DC

Short-circuit protection, outputs available

TRUE

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

Other

Digital outputs configurable

FALSE

Appendant operation agent (Ex ia)

FALSE

Permitted voltage at output

19…30 V

Performance level acc. EN ISO 13849-1

None

Type of voltage (input voltage)

DC

Height

55

Time delay at signal exchange

1.2 ms

Appendant operation agent (Ex ib)

FALSE

Type of output voltage

DC

Width

115

Redundancy

FALSE

Number of digital outputs

32

Suitable for safety functions

FALSE

Explosion safety category for dust

Other

Supply voltage DC

24 V

Depth

40

Explosion safety category for gas

Other
