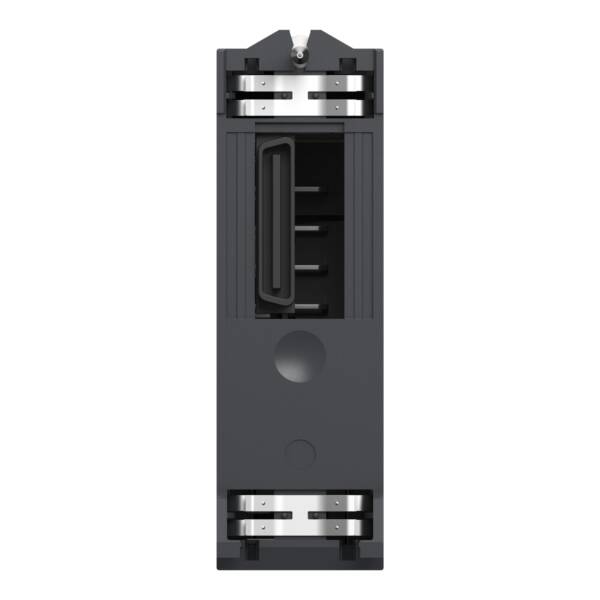

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 4W, a typical current consumption 79mA at 3.3V DC and 0.6A current per channel. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 392285 hours of MTBF. It is an IP20 rated product. It weighs 0.12kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDDO1602H

Weight (kg)

0.17 kg

Type

Modicon X80 I/Os

craft\elements\db\ElementQuery

0.65

craft\elements\db\ElementQuery

Plug-in connection

craft\elements\db\ElementQuery

0.5

craft\elements\db\ElementQuery

DC

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

None

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

Transistor

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

FALSE

Permitted voltage at output

24 V

craft\elements\db\ElementQuery

None

Permitted voltage at input

24 V

Type of voltage (input voltage)

DC

Height

100

craft\elements\db\ElementQuery

1.2 ms

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

1

craft\elements\db\ElementQuery

DC

Width

33

Suitable for safety functions

FALSE

Redundancy

FALSE

Number of digital outputs

16

craft\elements\db\ElementQuery

None

Supply voltage DC

24 V

Depth

150

craft\elements\db\ElementQuery

None
