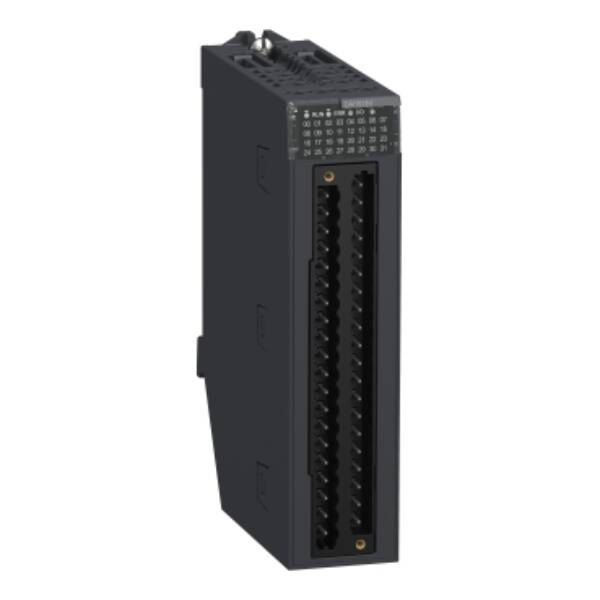

"This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 16 isolated input channels and t is supplied with 100 to 120V AC." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 564930 hours of MTBF." "This discrete module has a weight of 0.150kg and dimensions of 32x131x86mm." 0 "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 1 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDAI1614H

Weight (kg)

0.30 kg

Type

Modicon X80 I/Os
