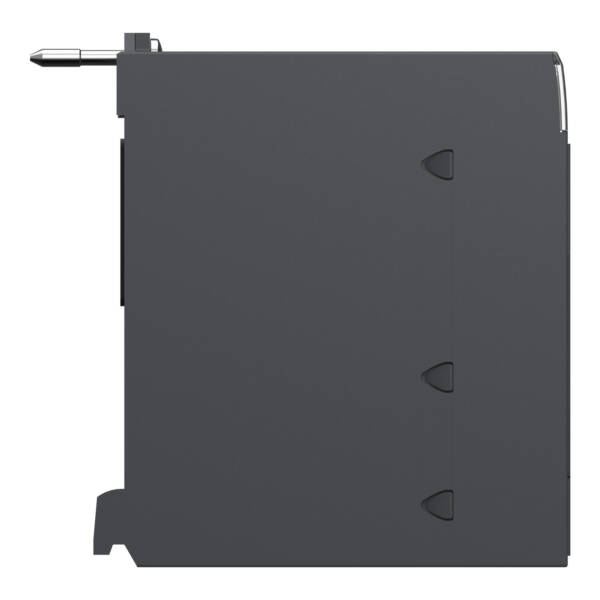

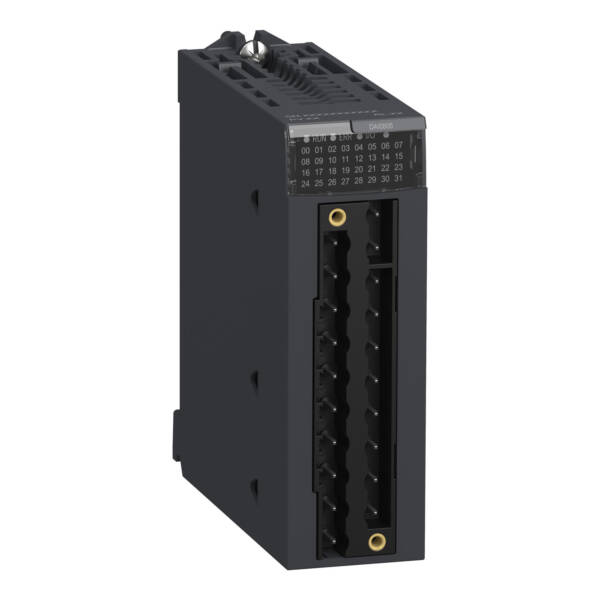

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 200V AC to 240V AC, a current consumption of 76mA at 3.3V DC, 93.6mA at 24V DC and a power dissipation 4.73W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow protection type. It is an IP20 rated product. It weighs 0.12kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDAI0805

Weight (kg)

0.16 kg

Type

Modicon X80 I/Os

Input current at signal 1

10.4

Type of electric connection

Plug-in connection

Short-circuit protection, outputs available

FALSE

Voltage type of supply voltage

AC

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

None

Digital outputs configurable

FALSE

Performance level acc. EN ISO 13849-1

None

Permitted voltage at output

200…240 V

Appendant operation agent (Ex ia)

FALSE

Supply voltage AC 50 Hz

200…240 V

Permitted voltage at input

200…240 V

Supply voltage AC 60 Hz

200…240 V

Type of voltage (input voltage)

AC

Height

100

Time delay at signal exchange

10…20 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Type of output voltage

AC

Width

33

Redundancy

FALSE

Suitable for safety functions

FALSE

Number of digital inputs

8

Explosion safety category for dust

None

Depth

150

Explosion safety category for gas

None
