Modicon X80 I/O
BMXDDI1603H
BMXDDI1603H

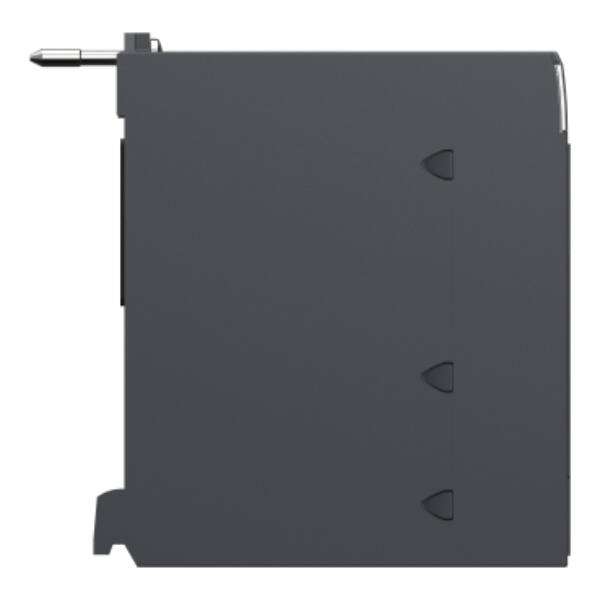

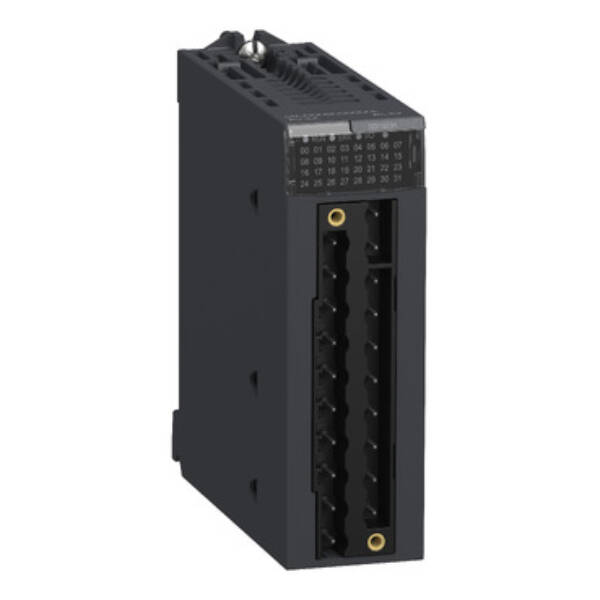

discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - Schneider Electric - BMXDDI1603H
Industrial Automation and Control
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 48V DC, a current consumption of 90mA at 3.3V DC and a power dissipation of 3.6W. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It offers 798237 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
List Price £245.06
+VAT
Our Price £196.05
+VAT
SAVE 20% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Specifications
Brand
Schneider Electric
Type
Modicon X80 I/Os
Range
Modicon X80 I/Os
Part No
BMXDDI1603H
Weight (kg)
0.16 kg
Datasheet for BMXDDI1603H - discrete input module X80 - 16 inputs - 48V DC current sink (logic positive) - Schneider Electric - BMXDDI1603H
Download
