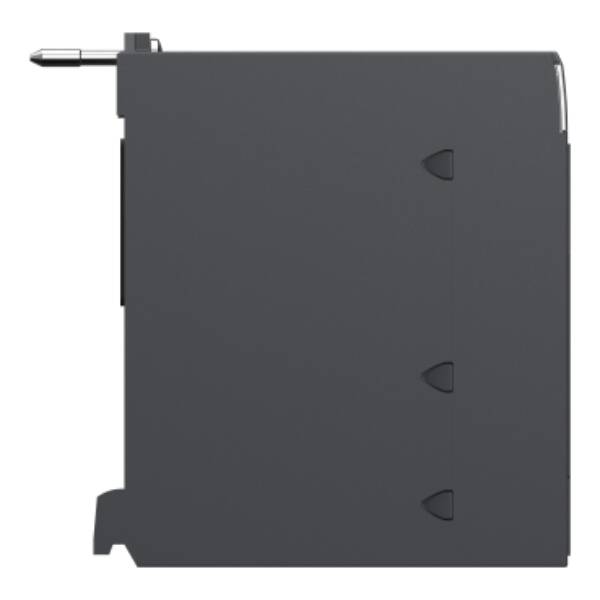

"This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 16 input channels and it is supplied with 48V AC." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 1131797 hours of MTBF." "This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm." 0 "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDAI1603H

Weight (kg)

0.14 kg

Type

Modicon X80 I/Os

Input current at signal 1

5

Type of electric connection

Plug-in connection

Short-circuit protection, outputs available

FALSE

Voltage type of supply voltage

AC

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

None

Digital outputs configurable

FALSE

Permitted voltage at output

48 V

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Supply voltage AC 50 Hz

48 V

Permitted voltage at input

48 V

Supply voltage AC 60 Hz

48 V

Type of voltage (input voltage)

AC

Height

100

Time delay at signal exchange

10…20 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Type of output voltage

AC

Width

33

Redundancy

FALSE

Suitable for safety functions

FALSE

Number of digital inputs

16

Explosion safety category for dust

None

Depth

150

Explosion safety category for gas

None
