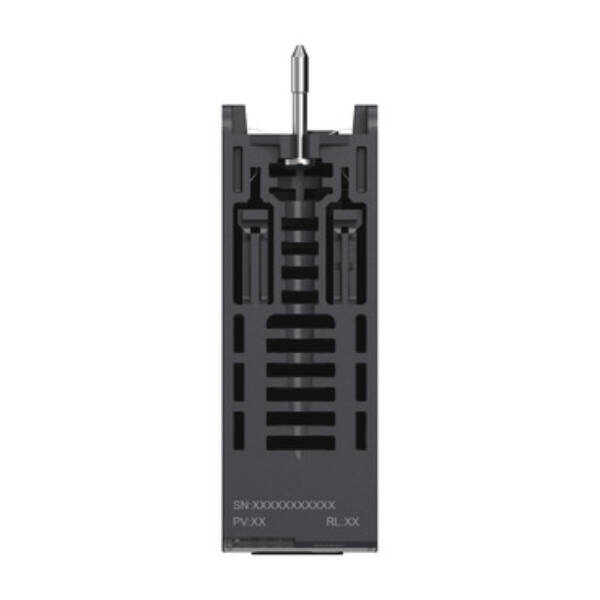

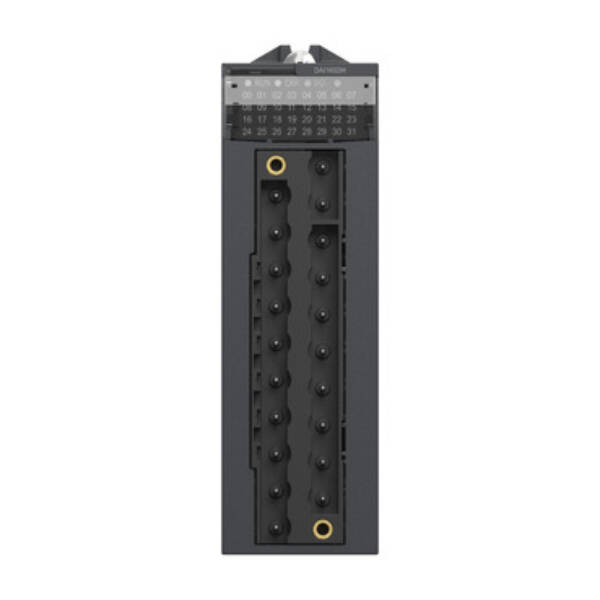

"This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 16 discrete input channels and it is supplied with 24V AC/DC (positive or negative)." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 1124252 hours of MTBF." "This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm." 0 "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDAI1602H

Weight (kg)

0.14 kg

Type

Modicon X80 I/Os
