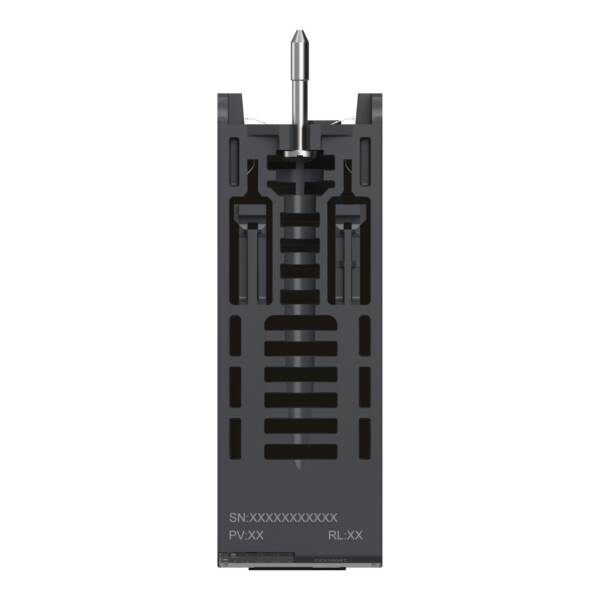

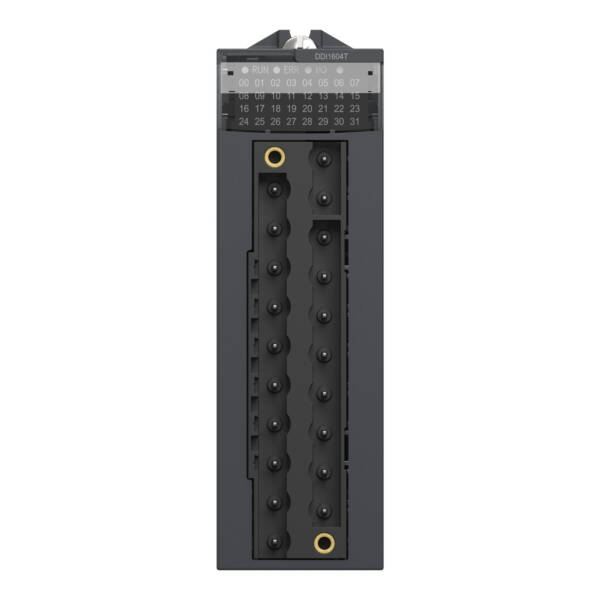

discrete input module X80 - 16 inputs - 125 V DC - Schneider Electric - BMXDDI1604T
discrete input module X80 - 16 inputs - 125 V DC - Schneider Electric - BMXDDI1604T

BMXDDI1604T

discrete input module X80 - 16 inputs - 125 V DC - Schneider Electric - BMXDDI1604T

Automation

List Price £496.63 +VAT

Our Price £397.30 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 125V DC, a current consumption of 76mA at 3.3V DC and a power dissipation 8.5W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and extended temperature applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand
Schneider Electric
Range
Modicon X80 I/Os
Part No
BMXDDI1604T
Weight (kg)
0.15 kg
Type
Modicon X80 I/Os
Input current at signal 1
2.4
Type of electric connection
Plug-in connection
Voltage type of supply voltage
DC
Short-circuit protection, outputs available
FALSE
SIL according to IEC 61508
None
Digital inputs configurable
FALSE
Type of digital output
None
Digital outputs configurable
FALSE
Appendant operation agent (Ex ia)
FALSE
Performance level acc. EN ISO 13849-1
None
Permitted voltage at output
125 V
Permitted voltage at input
125 V
Type of voltage (input voltage)
DC
Height
100
Time delay at signal exchange
5…9 ms
Appendant operation agent (Ex ib)
FALSE
Category according to EN 954-1
1
Type of output voltage
DC
Width
33
Redundancy
FALSE
Suitable for safety functions
FALSE
Number of digital inputs
16
Explosion safety category for dust
None
Supply voltage DC
3.3 V
Depth
150
Explosion safety category for gas
None

Datasheet for BMXDDI1604T - discrete input module X80 - 16 inputs - 125 V DC - Schneider Electric - BMXDDI1604T
