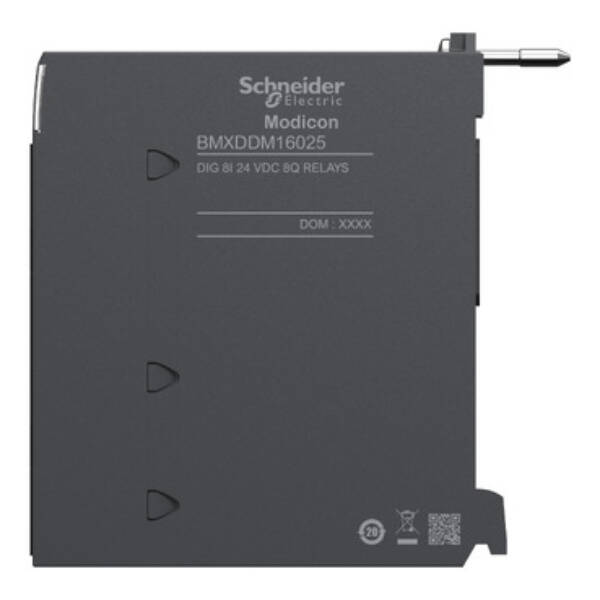

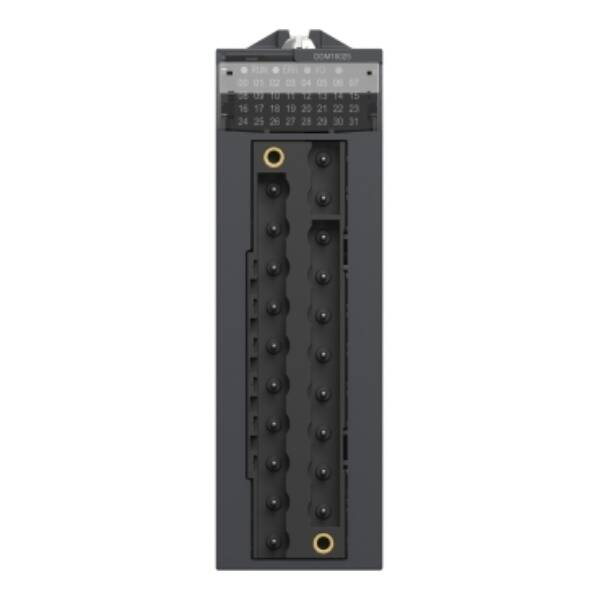

discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - relay - Schneider Electric - BMXDDM16025
discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - relay - Schneider Electric - BMXDDM16025

BMXDDM16025

discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - relay - Schneider Electric - BMXDDM16025

Automation

List Price £251.82 +VAT

Our Price £201.46 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 relay output channels. It is a discrete I/O module with a discrete input voltage of 24V DC, an output voltage of 24V DC, 24V to 240V AC, 10V to 264V AC, an output current of 2A, a maximum power dissipation of 3.1W and current consumption of 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers 912167 hours of MTBF. It is an IP20 rated product. It weighs 0.135kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand
Schneider Electric
Range
Modicon X80 I/Os
Part No
BMXDDM16025
Weight (kg)
0.16 kg
Type
Modicon X80 I/Os
Input current at signal 1
3.5
craft\elements\db\ElementQuery
2
craft\elements\db\ElementQuery
Plug-in connection
Short-circuit protection, outputs available
TRUE
craft\elements\db\ElementQuery
DC
craft\elements\db\ElementQuery
None
Digital inputs configurable
TRUE
Type of digital output
Relay
Digital outputs configurable
TRUE
craft\elements\db\ElementQuery
None
Permitted voltage at output
19…30 V
craft\elements\db\ElementQuery
FALSE
Permitted voltage at input
19…30 V
Type of voltage (input voltage)
DC
Height
100
Time delay at signal exchange
4…7 ms
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
DC
Width
33
Suitable for safety functions
FALSE
Redundancy
FALSE
Number of digital outputs
8
Number of digital inputs
8
Supply voltage DC
24 V
craft\elements\db\ElementQuery
None
Depth
150
craft\elements\db\ElementQuery
None

Datasheet for BMXDDM16025 - discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - relay - Schneider Electric - BMXDDM16025
