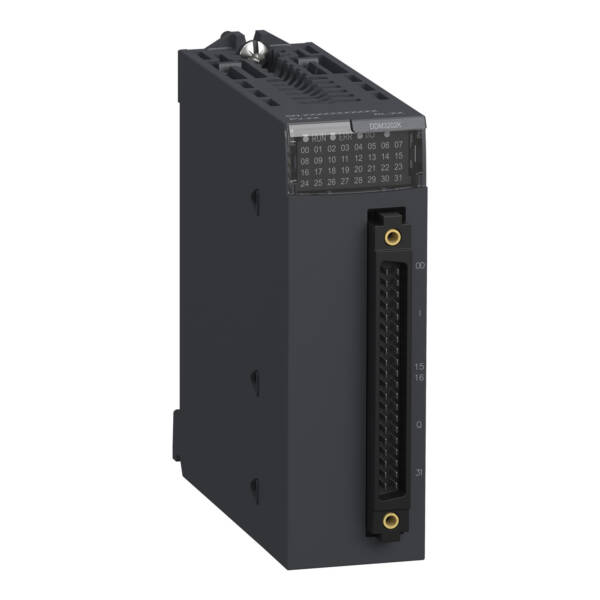

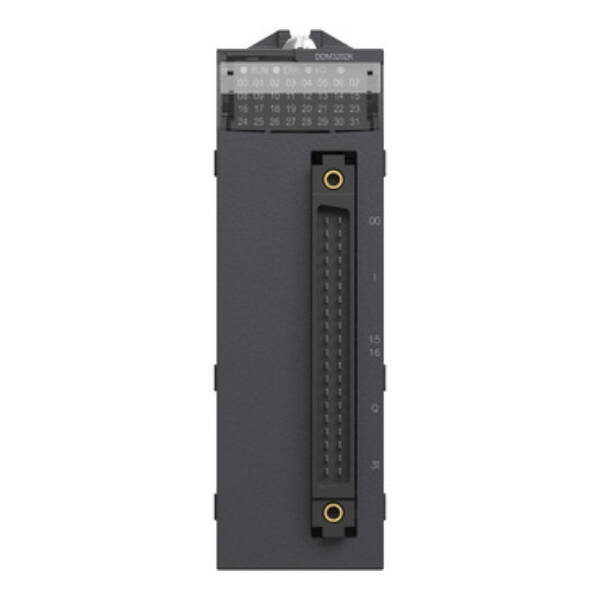

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDDM3202K

Weight (kg)

0.13 kg

Type

Modicon X80 I/Os

Input current at signal 1

2.5

Output, current

0.1

Type of electric connection

Plug-in connection

Short-circuit protection, outputs available

FALSE

Voltage type of supply voltage

DC

SIL according to IEC 61508

None

Digital inputs configurable

TRUE

Type of digital output

Transistor

Digital outputs configurable

TRUE

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Permitted voltage at output

19…30 V

Permitted voltage at input

19…30 V

Type of voltage (input voltage)

DC

Height

100

Time delay at signal exchange

4…7 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Type of output voltage

DC

Width

33

Redundancy

FALSE

Suitable for safety functions

FALSE

Number of digital outputs

16

Number of digital inputs

16

Supply voltage DC

24 V

Explosion safety category for dust

None

Depth

150

Explosion safety category for gas

None
