Brand
-
Schneider Electric
-
Range
-
Smart Relays - Zelio Logic
-

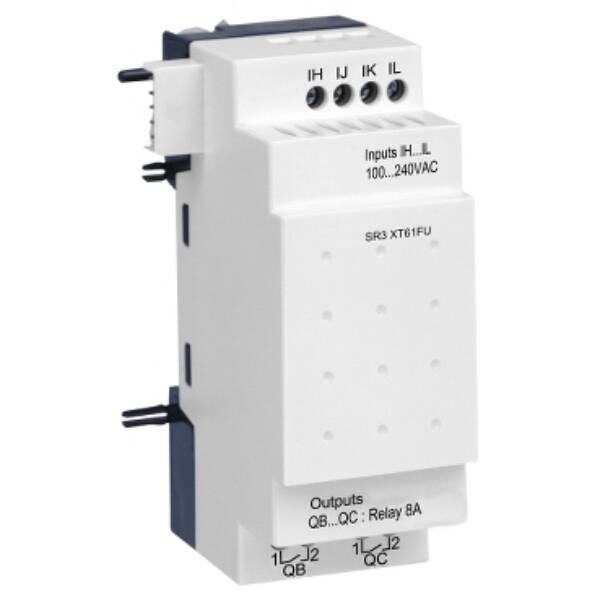

Part No
-
SR3XT61FU
-
Weight (kg)
-
0.12 kg
-
Type
-
Smart Relays - Zelio Logic
-
Expandable
-
FALSE
-
Supporting protocol for SERCOS
-
FALSE
-
SIL according to IEC 61508
-
None
-
With optical interface
-
FALSE
-
Performance level acc. EN ISO 13849-1
-
None
-
Basic device
-
TRUE
-
Radio standard GPRS
-
FALSE
-
With relay output
-
TRUE
-
Height
-
90
-
Supporting protocol for INTERBUS-Safety
-
FALSE
-
Category according to EN 954-1
-
1
-
Width
-
35
-
Redundancy
-
FALSE
-
Supporting protocol for AS-Interface Safety at Work
-
FALSE
-
Explosion safety category for dust
-
None
-
Radio standard GSM
-
FALSE
-
Radio standard UMTS
-
FALSE
-
Depth
-
59.5
-
Explosion safety category for gas
-
None
-
Supporting protocol for DeviceNet Safety
-
FALSE
-
Supporting protocol for EtherNet/IP
-
FALSE
-
Supporting protocol for Foundation Fieldbus
-
FALSE
-
Expansion device
-
TRUE
-
With display
-
FALSE
-
Supporting protocol for SafetyBUS p
-
FALSE
-
Voltage type of supply voltage
-
AC
-
With timer
-
FALSE
-
Supporting protocol for PROFINET CBA
-
FALSE
-
Supporting protocol for PROFINET IO
-
FALSE
-
Supporting protocol for PROFIsafe
-
FALSE
-
Supporting protocol for ASI
-
FALSE
-
Radio standard Bluetooth
-
FALSE
-
Appendant operation agent (Ex ia)
-
FALSE
-
Radio standard WLAN 802.11
-
FALSE
-
Supporting protocol for PROFIBUS
-
FALSE
-
Supply voltage AC 50 Hz
-
100…240 V
-
Front build in possible
-
TRUE
-
Supply voltage AC 60 Hz
-
100…240 V
-
Supporting protocol for TCP/IP
-
FALSE
-
Supporting protocol for KNX
-
FALSE
-
Appendant operation agent (Ex ib)
-
FALSE
-
Degree of protection (IP)
-
IP20
-
Supporting protocol for CAN
-
FALSE
-
Supporting protocol for INTERBUS
-
FALSE
-
IO link master
-
FALSE
-
Rail mounting possible
-
TRUE
-
Supporting protocol for DeviceNet
-
FALSE
-
Suitable for safety functions
-
FALSE
-
Number of digital outputs
-
2
-
Switching current
-
8
-
Supporting protocol for MODBUS
-
FALSE
-
Supporting protocol for Data-Highway
-
FALSE
-
Number of digital inputs
-
4
-
Rack-assembly possible
-
FALSE
-
Supporting protocol for LON
-
FALSE
-
Supporting protocol for other bus systems
-
FALSE
-
Supporting protocol for SUCONET
-
FALSE
-
Wall mounting/direct mounting
-
TRUE
