discrete I/O extension module - 10 I O - 24 V AC - for Zelio Logic - Schneider Electric - SR3XT101B

discrete I/O extension module - 10 I O - 24 V AC - for Zelio Logic - Schneider Electric - SR3XT101B

SR3XT101B

discrete I/O extension module - 10 I O - 24 V AC - for Zelio Logic - Telemecanique - SR3XT101B

Automation

~~List Price £75.46 +VAT~~

Our Price £60.37 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

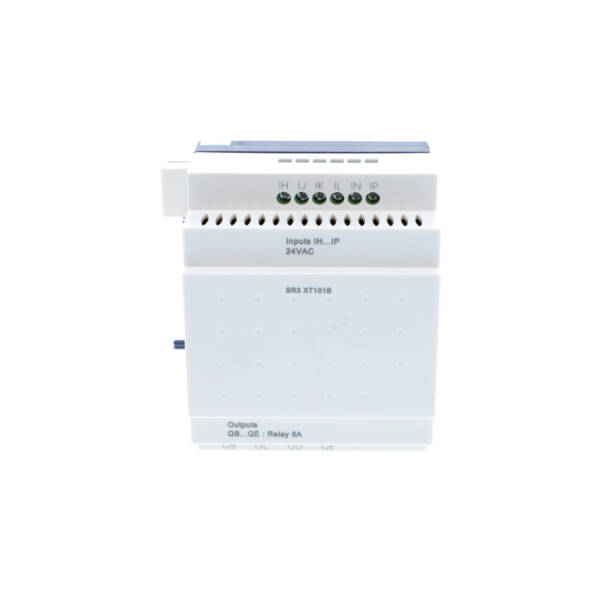

This product is part of Zelio Logic SR2/SR3, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This discrete I/O extension module offers 6 discrete inputs with 4 relay outputs. It is a module with discrete input voltage of 24V AC with discrete input frequency of 47Hz to 53Hz, 57Hz to 63Hz. It is an IP20 and IP40 rated product. It weighs 0.2kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 61000-4-2 L3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 L3 and EN/IEC 60068-2-6 Fc standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Brand: Schneider Electric
Range: Smart Relays - Zelio Logic
Part No: SR3XT101B
Weight (kg): 0.18 kg
Type: Smart Relays - Zelio Logic
Expandable: FALSE
Supporting protocol for SERCOS: FALSE
SIL according to IEC 61508: None
With optical interface: FALSE
Performance level acc. EN ISO 13849-1: None
Basic device: TRUE
Radio standard GPRS: FALSE
With relay output: TRUE
Height: 90
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 72
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Explosion safety category for dust: None
Radio standard UMTS: FALSE
Depth: 59.5
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Expansion device: TRUE
With display: FALSE
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
With timer: FALSE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for PROFIBUS: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supply voltage AC 50 Hz: 24 V
Front build in possible: TRUE
Supply voltage AC 60 Hz: 24 V
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Degree of protection (IP): IP20
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: TRUE
Suitable for safety functions: FALSE
Switching current: 8
Supporting protocol for MODBUS: FALSE
Number of digital outputs: 4
Supporting protocol for Data-Highway: FALSE
Number of digital inputs: 6
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE

Datasheet for SR3XT101B - discrete I/O extension module - 10 I O - 24 V AC - for Zelio Logic - Schneider Electric - SR3XT101B
