TPRST038

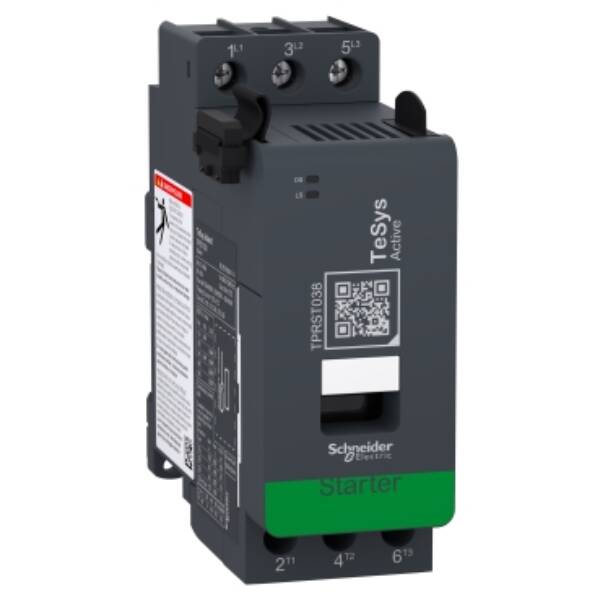

Direct online starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp - Schneider Electric - TPRST038

Automation

TeSys island direct starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

~~List Price £113.00 +VAT~~

Our Price £84.75 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
