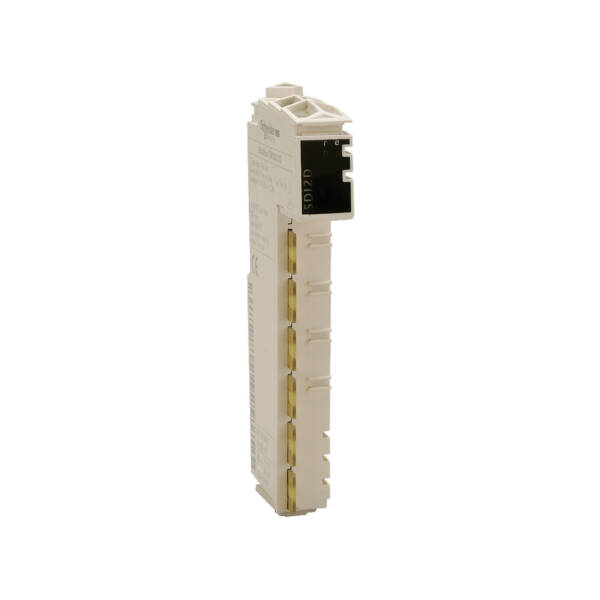

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete input module provides 6 discrete inputs with sink discrete input logic. It provides a rated supply voltage of 24V DC, a current consumption of 30mA at 5V DCbus, 37mA at 24V DC all inputs on, a maximum power dissipation of 1.03W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is furnished with two wires for electrical connection. It is an IP20 rated product. Its housing colour is black.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SDI6D

Weight (kg)

0.04 kg

Type

Modicon TM5 IP20 modular I/O system

Type of electric connection

Other

Voltage type of supply voltage

DC

Short-circuit protection, outputs available

FALSE

SIL according to IEC 61508

1

Digital inputs configurable

FALSE

Type of digital output

Other

Digital outputs configurable

FALSE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Height

99

Time delay at signal exchange

0.1 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

12.5

Redundancy

FALSE

Suitable for safety functions

FALSE

Number of digital inputs

6

Explosion safety category for dust

Other

Supply voltage DC

24 V

Depth

75

Explosion safety category for gas

Other
