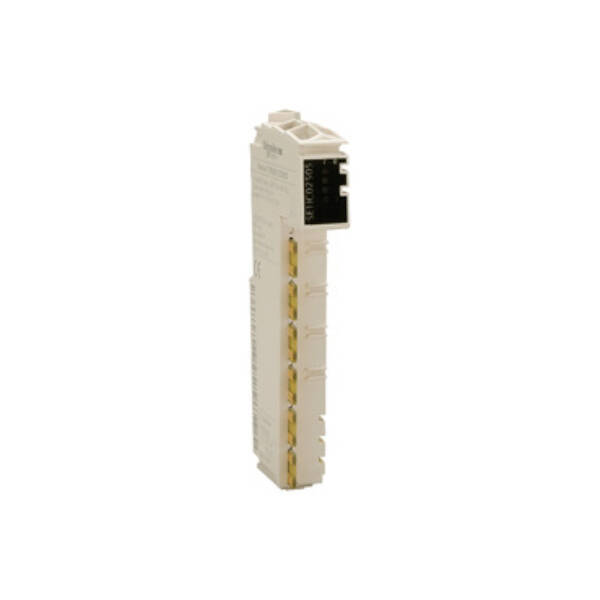

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The counter module provides 2 HSC incremental encoder inputs. Its counting frequency is 100kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter inputs resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SE2IC01024

Weight (kg)

0.04 kg

Type

Modicon TM5 IP20 modular I/O system

Single-axis positioning possible

FALSE

Number of functions

2

Single-axis controller possible

FALSE

Suitable for multi-axis positioning

TRUE

SIL according to IEC 61508

None

Suitable for counting

TRUE

Suitable for weighting

FALSE

Suitable for temperature control

FALSE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Suitable for NC

FALSE

Height

99

Suitable for SSI

FALSE

Suitable for welding control

FALSE

Appendant operation agent (Ex ib)

FALSE

Suitable for pressure control

FALSE

Width

12.5

Suitable for incremental data detection

TRUE

Function electronic positioning available

FALSE

Redundancy

FALSE

Suitable for safety functions

FALSE

Suitable for CNC

FALSE

Explosion safety category for dust

None

Suitable for detection absolute value

FALSE

Depth

75

Explosion safety category for gas

None

Flux controller possible

FALSE

Suitable for flux measurement

FALSE

Suitable for flying saw

FALSE

Suitable for multi-axis control

TRUE

Suitable for path controller

FALSE

Suitable for cam controller

FALSE
