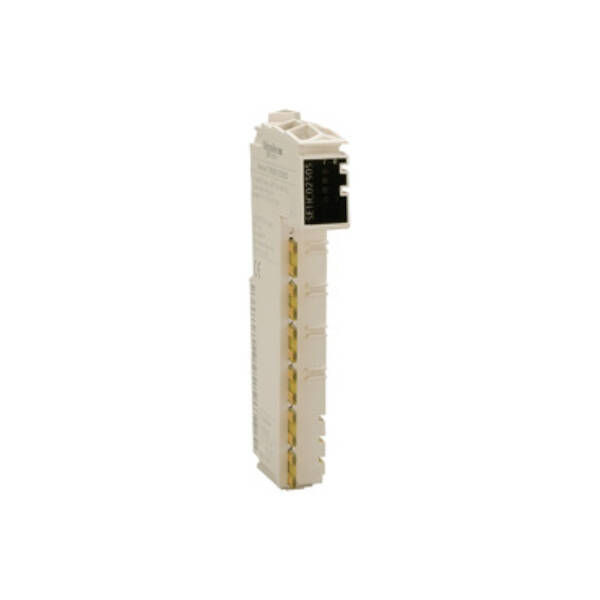

counter module - 1 HSC incremental - 4 MHz - Schneider Electric - TM5SE1IC20005
counter module - 1 HSC incremental - 4 MHz - Schneider Electric - TM5SE1IC20005

TM5SE1IC20005

counter module - 1 HSC incremental - 4 MHz - Schneider Electric - TM5SE1IC20005

Automation

List Price £259.32 +VAT

Our Price £207.46 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System." "This counter module provides 1 HSC incremental input." "It has 2x 24VDC RS422 sink auxiliary inputs, Its counting frequency is 4MHz per channel." "This counter module is specifically designed to operate on the sercos bus, using the Sercos Bus Interface Module." "There is an insulation between channel and bus at 500Vrms AC and no insulation between channels." "The maximum cycle time is 2ms and counter input resolution is 16bit/32bit. It is an IP20 rated product." "It measures 12,5mm wide, 99mm high, 75mm deep, and weighs 0.025kg. Its housing colour is white." "The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems." "This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards." "This product is compatible with PacDrive LMC Eco, Pro and Pro2 Motion controllers." "It is installed on a bus base for mounting on a 35mm DIN rail." "This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers." "Flexible and scalable, designed for complex machines."
Brand
Schneider Electric
Part No
TM5SE1IC20005
Weight (kg)
0.04 kg
Single-axis positioning possible
TRUE
Number of functions
2
Single-axis controller possible
TRUE
Suitable for multi-axis positioning
FALSE
SIL according to IEC 61508
None
Suitable for counting
TRUE
Suitable for weighting
FALSE
Suitable for temperature control
FALSE
Appendant operation agent (Ex ia)
FALSE
Performance level acc. EN ISO 13849-1
None
Suitable for NC
FALSE
Height
101
Suitable for SSI
FALSE
Appendant operation agent (Ex ib)
FALSE
Suitable for welding control
FALSE
Suitable for pressure control
FALSE
Width
20
Suitable for incremental data detection
TRUE
Function electronic positioning available
FALSE
Redundancy
FALSE
Suitable for safety functions
FALSE
Suitable for CNC
FALSE
Explosion safety category for dust
None
Suitable for detection absolute value
FALSE
Depth
60
Explosion safety category for gas
None
Flux controller possible
FALSE
Suitable for flux measurement
FALSE
Suitable for flying saw
FALSE
Suitable for multi-axis control
FALSE
Suitable for path controller
FALSE
Suitable for cam controller
FALSE

Datasheet for TM5SE1IC20005 - counter module - 1 HSC incremental - 4 MHz - Schneider Electric - TM5SE1IC20005
