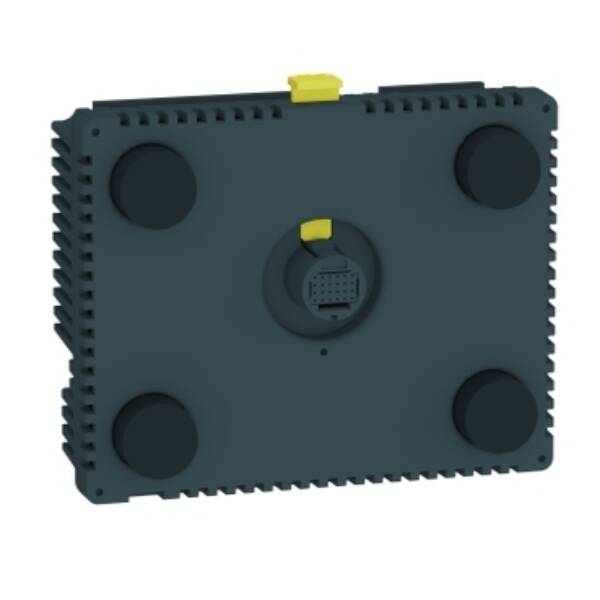

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. This rear module controller panel provides 8/8 digital I/Os and 4/2 analogue I/Os. It supports Modbus, CANopen and Modbus TCP/IP downloadable protocols. It is designed with internal data storage of 128kB FRAM, flash NAND of 128MB and application run DRAM of 128MB. It is a controller panel with a rated supply voltage of 24V DC, supplied by external source with the limit ranges from 20.4V to 28.8V DC. It is an IP20 (rear panel) / IP65 (front panel) and NEMA 4X rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height) and weighs 0.398kg. It is certified by CULus, CUL, GOST, C-Tick, CSA, KCC. It meets UL 508, FCC Class A, EN 61131-2, WEEE directive 2002/96/EC, CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12-12-01, RoHS, RoHS China SJ/T 11363-2006, IEC 61000-6-2 standards. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

Brand

Schneider Electric

Range

Harmony SCU

Part No

HMISBC

Weight (kg)

0.87 kg

Type

Harmony SCU

With message indication

FALSE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces USB

2

Useful project memory/user memory

128

With numeric keyboard

FALSE

With alpha numeric keyboard

FALSE

Degree of protection (NEMA), front side

4X

Radio standard GPRS

FALSE

With message system (incl. buffer and confirmation)

FALSE

Process value representation (output) possible

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Type of display

Other

With printer output

FALSE

Process default value (input) possible

FALSE

With recipes

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Degree of protection (IP), front side

IP65/IP67

Radio standard UMTS

FALSE

Number of online languages

4

Additional software components, loadable

TRUE

Touch technology

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

TRUE

Operation temperature

-20…60 °C

Built-in depth

50.65

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

TRUE

With colour display

FALSE

IO link master

TRUE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Width of the front

128

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

TRUE

Height of the front

102

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 V

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-232

1
