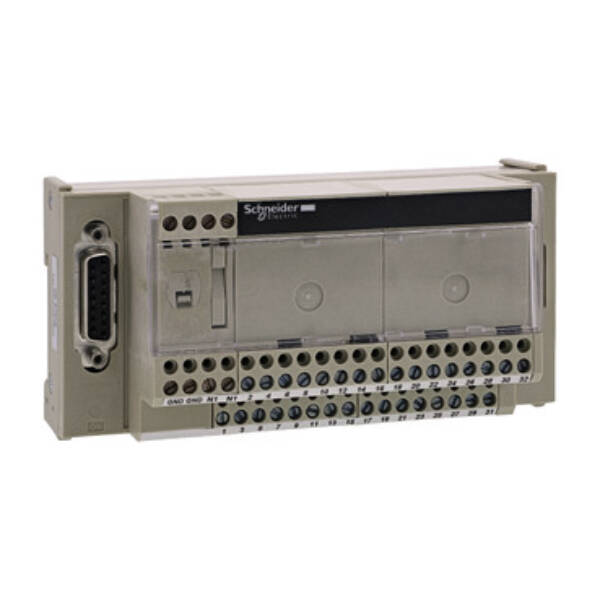

"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a connection sub-base for 8 channels as counter inputs and analog I/O." "Its control circuit voltage is 24VDC." "It provides counting, analog, axis control, and position control functions." "It is furnished with screw terminals for electrical connection and 15-way SUB-D connection to programmable logic controllers." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "Its degree of protection is IP20 conforming to IEC 60529. It weighs 0.290kg." 0 "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with TSX micro and Modicon Premium plcs." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7CPA01

Weight (kg)

0.33 kg

Type

Advantys Telefast ABE 7
