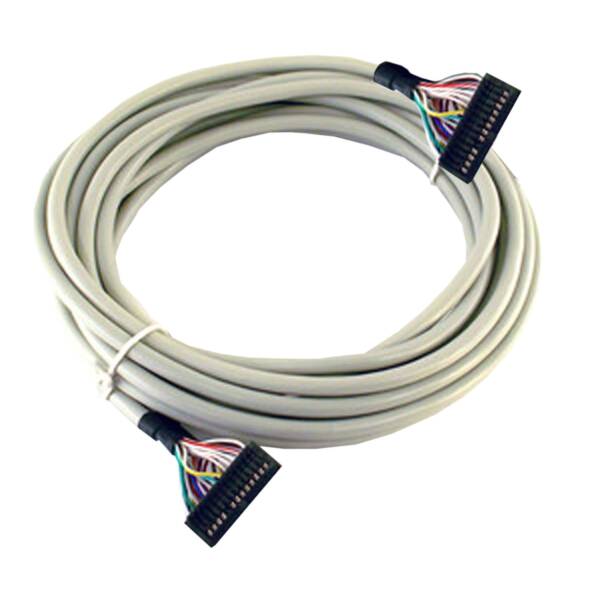

"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a connection cable between plc and passive and relay sub-bases with 16 channels." "It is pre-equipped with one1 connector 20-way HE10 at sensor side and 1 connector 20-way HE10 at plc side." "It is used to connect the digital inputs between ABE7 sub-bases and Modicon M221 and Twido PLCs, and Modicon TM3 modules." "It measures 3m." "It weighs 0.210kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "It is suitable for use with TM221M32TK, TM221ME32TK, TM3DI16K, TM3DI32K, TWDDDI32DK,TWDDDI16DK." "It is delivered in 1 package (PCE type)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABFTE20EP300

Weight (kg)

0.19 kg

Type

Advantys Telefast ABE 7

Length

3

Suitable for analogue signals

FALSE

Function

PLC - other devices

Type of electrical connection, box-sided

Other

Suitable for input board PLC

FALSE

Suitable for output card PLC

FALSE

Suitable for digital signals

TRUE

Type of electrical connection, field-sided

Other
