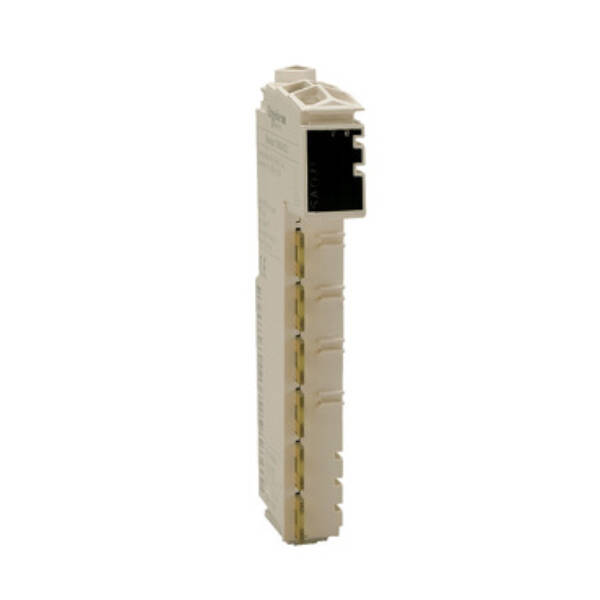

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This kit is made of output module TM5SAO4L, a terminal block TM5ACTB12 and a bus base TM5ACBM11. This analogue output module provides 4 analogue outputs with 12bits + sign, ±10V, 0mA to 20mA resolution. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The output voltage is ±10V and output current is 0mA to 20mA differential with internal supply. It is an IP20 rated product. It weighs 0.075kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
