XB4BD912R470K

Complete potentiometer, metal, Ø22, 470K - Schneider Electric - XB4BD912R470K

Control

~~List Price £94.91 +VAT~~

Our Price £71.18 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

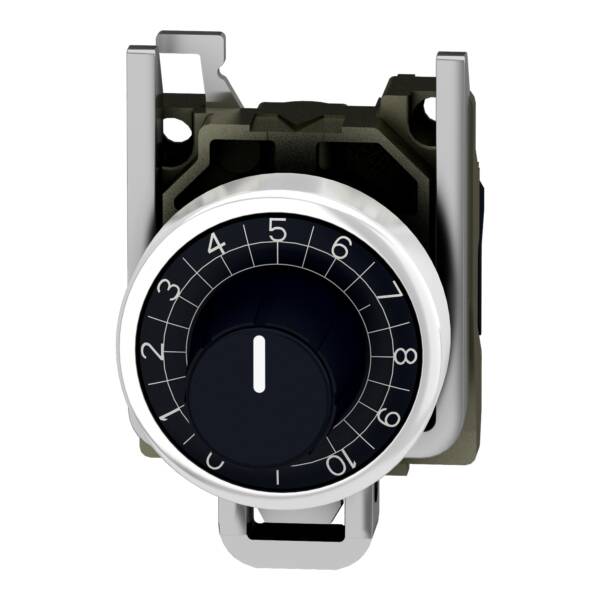

This Harmony XB4 potentiometer has a resistance of 470kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.

Brand: Schneider Electric
Range: Harmony XB4
Part No: XB4BD912R470K
Weight (kg): 0.10 kg
Type: Harmony XB4
Degree of protection (IP): IP66
Resistance: 470000
Type of electric connection: Other
Number of revolutions: 0…3000000
Degree of protection (NEMA): 4X
Hole diameter: 22.5
Power consumption: 0.26
