TeSys Deca Overload Relays
LR2D3561
LR2D3561

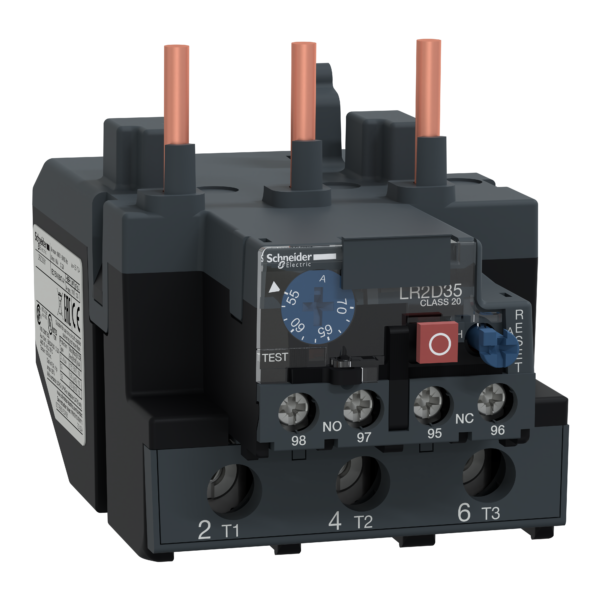

TeSys LRD thermal overload relays - 55...70 A - class 20 - Schneider Electric - LR2D3561
Automation
List Price £261.48
+VAT
Our Price £196.11
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Product description
Specifications
Downloads
TeSys LRD thermal overload relay, 70A/1000V, thermal setting range 55-70A, tripping class 20, for protection of 3-phase motors 30kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Brand
Schneider Electric
Range
TeSys Deca overload relays
Part No
LR2D3561
Weight (kg)
0.52 kg
Type
TeSys Deca overload relays
Datasheet for LR2D3561 - TeSys LRD thermal overload relays - 55...70 A - class 20 - Schneider Electric - LR2D3561
Download
