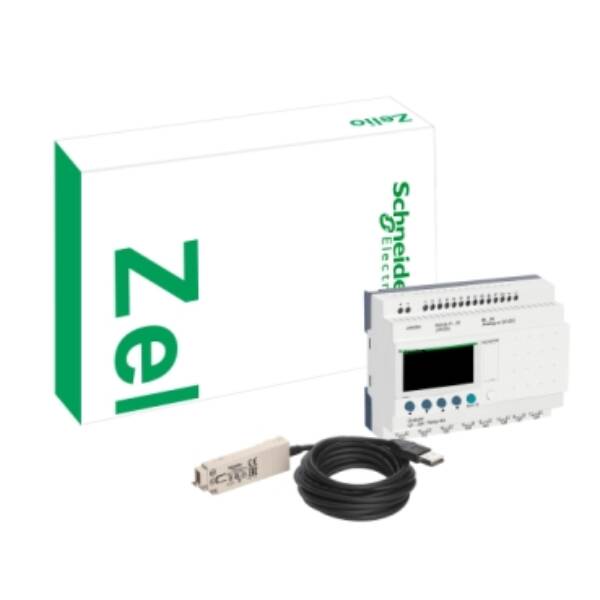

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 12 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 8 resistive discrete inputs with voltage of 24V DC, 4 analogue input ranges from 0V to 10V, 0V to 24V and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Brand

Schneider Electric

Range

Smart Relays - Zelio Logic

Part No

SR2PACKBD

Weight (kg)

0.40 kg

Type

Smart Relays - Zelio Logic

Contains module rack

FALSE

Contains communication module

TRUE

Contains control unit

TRUE

Contains function building blocks

TRUE

Contains memory unit

TRUE

Contains power supply

FALSE

Contains function module

TRUE

Contains analogue output module

FALSE

Contains basic device

TRUE

Contains analogue input module

FALSE

Contains technology module

FALSE

Contains digital output module

TRUE

Contains programming software

TRUE

Contains digital input module

TRUE

Contains simulation module

TRUE

Software preinstalled

FALSE

Contains documentation

TRUE

Contains engineering software

TRUE

Contains connection cable

TRUE

Contains monitor

TRUE

Contains visualization

TRUE

Contains libraries

TRUE

Contains other components

TRUE
