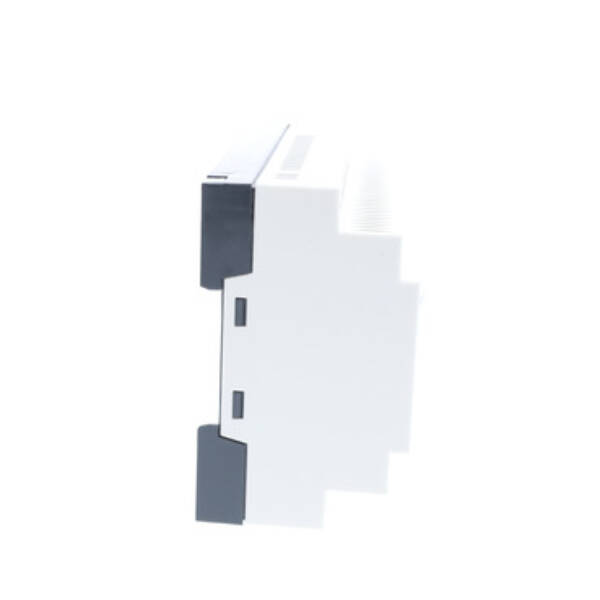

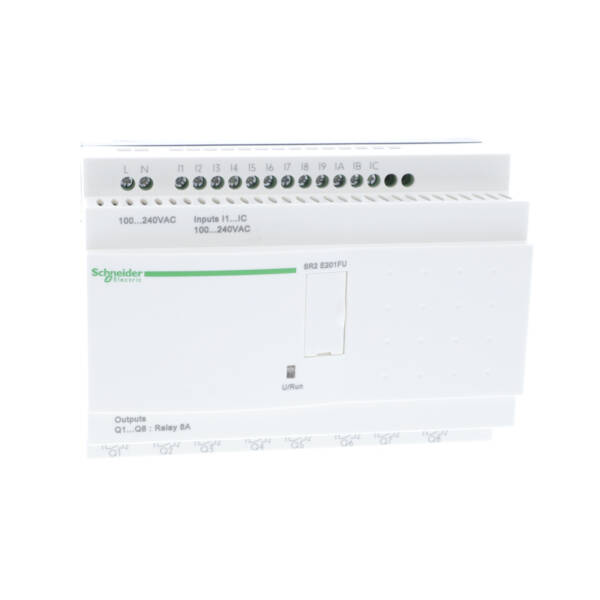

compact smart relay Zelio Logic - 20 I O - 100..240 V AC - clock - no display - Schneider Electric - SR2E201FU
compact smart relay Zelio Logic - 20 I O - 100..240 V AC - clock - no display - Schneider Electric - SR2E201FU

SR2E201FU

compact smart relay Zelio Logic - 20 I O - 100..240 V AC - clock - no display - Schneider Electric - SR2E201FU

Automation

List Price £221.64 +VAT

Our Price £177.31 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes without display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 8 relay outputs with normally opened contact and 12 discrete inputs. It has a rated supply voltage of 100V to 240V AC, a maximum supply current of 50mA at 240V (without extension), 100mA at 100V (without extension) and a power consumption of 11VA without extension. It is an IP20 and IP40 rated product. It weighs 0.35kg. This product meets EN/IEC 61000-4-3, EN/IEC 61000-4-11, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, N/IEC 61000-4-5, EN/IEC 60068-2-27 Ea and EN/IEC 61000-4-6 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Brand
Schneider Electric
Range
Smart Relays - Zelio Logic
Part No
SR2E201FU
Weight (kg)
0.33 kg
Type
Smart Relays - Zelio Logic
Expandable
FALSE
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
1
SIL according to IEC 61508
None
With optical interface
FALSE
Performance level acc. EN ISO 13849-1
None
Basic device
TRUE
Radio standard GPRS
FALSE
With relay output
TRUE
Height
90
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
124.6
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
59.5
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Expansion device
FALSE
With display
FALSE
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
AC
With timer
TRUE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Appendant operation agent (Ex ia)
FALSE
Radio standard WLAN 802.11
FALSE
Supporting protocol for PROFIBUS
FALSE
Supply voltage AC 50 Hz
100…240 V
Supporting protocol for TCP/IP
FALSE
Front build in possible
TRUE
Supply voltage AC 60 Hz
100…240 V
Supporting protocol for KNX
FALSE
Supporting protocol for CAN
FALSE
Appendant operation agent (Ex ib)
FALSE
Degree of protection (IP)
IP20
Supporting protocol for INTERBUS
FALSE
IO link master
FALSE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
TRUE
Suitable for safety functions
FALSE
Switching current
8
Supporting protocol for MODBUS
FALSE
Number of digital outputs
8
Number of digital inputs
12
Supporting protocol for Data-Highway
FALSE
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-232
1

Datasheet for SR2E201FU - compact smart relay Zelio Logic - 20 I O - 100..240 V AC - clock - no display - Schneider Electric - SR2E201FU
