compact smart relay Zelio Logic - 12 I O - 24 V DC - clock - display - Schneider Electric - SR2B121BD
compact smart relay Zelio Logic - 12 I O - 24 V DC - clock - display - Schneider Electric - SR2B121BD

SR2B121BD

compact smart relay Zelio Logic - 12 I O - 24 V DC - clock - display - Telemecanique - SR2B121BD

Automation

List Price £158.29 +VAT

Our Price £126.63 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

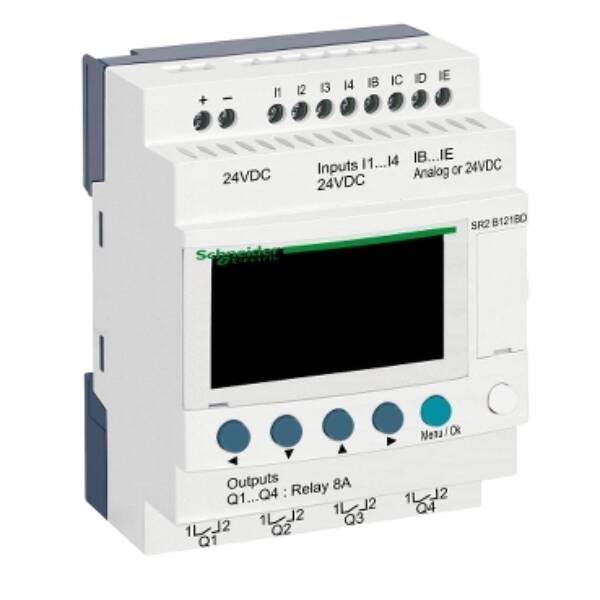

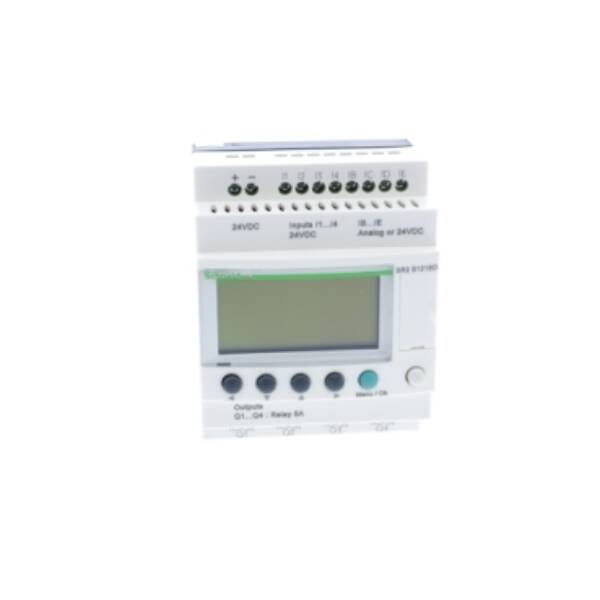

This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 12 inputs / outputs with screw-clamp terminals, has an integrated clock and LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Brand
Schneider Electric
Range
Smart Relays - Zelio Logic
Part No
SR2B121BD
Weight (kg)
0.24 kg
Type
Smart Relays - Zelio Logic
Expandable
FALSE
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
1
SIL according to IEC 61508
None
With optical interface
FALSE
Performance level acc. EN ISO 13849-1
None
Basic device
TRUE
Radio standard GPRS
FALSE
With relay output
TRUE
Height
90
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
71.2
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Explosion safety category for dust
None
Radio standard GSM
FALSE
Radio standard UMTS
FALSE
Depth
59.5
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Expansion device
FALSE
With display
TRUE
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
DC
With timer
TRUE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Appendant operation agent (Ex ia)
FALSE
Radio standard WLAN 802.11
FALSE
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Front build in possible
TRUE
Supporting protocol for KNX
FALSE
Supporting protocol for CAN
FALSE
Appendant operation agent (Ex ib)
FALSE
Degree of protection (IP)
IP20
Supporting protocol for INTERBUS
FALSE
IO link master
FALSE
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Suitable for safety functions
FALSE
Number of digital outputs
4
Switching current
8
Supporting protocol for MODBUS
FALSE
Number of digital inputs
8
Supporting protocol for Data-Highway
FALSE
Supply voltage DC
24 V
Rack-assembly possible
FALSE
Number of analogue inputs
4
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-232
1

Datasheet for SR2B121BD - compact smart relay Zelio Logic - 12 I O - 24 V DC - clock - display - Schneider Electric - SR2B121BD
