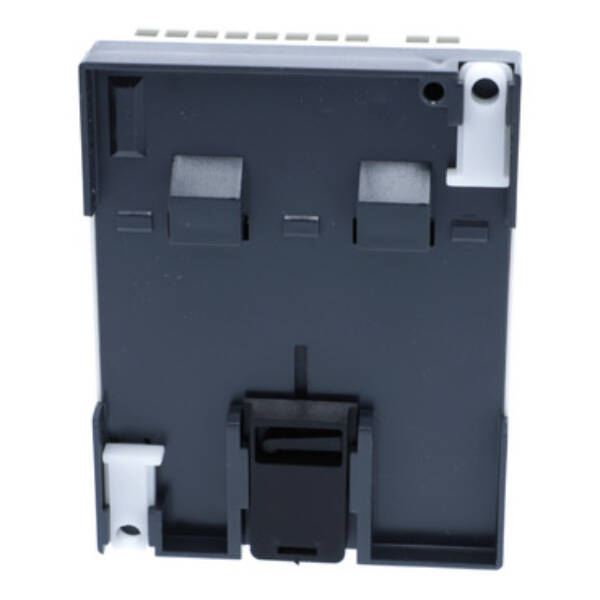

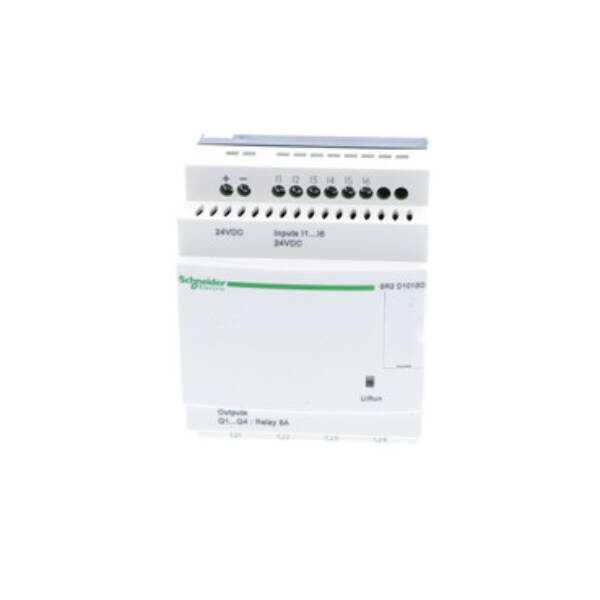

compact smart relay Zelio Logic - 10 I O - 24 V DC - no clock - no display - Schneider Electric - SR2D101BD
compact smart relay Zelio Logic - 10 I O - 24 V DC - no clock - no display - Schneider Electric - SR2D101BD

SR2D101BD

compact smart relay Zelio Logic - 10 I O - 24 V DC - no clock - no display - Telemecanique - SR2D101BD

Automation

List Price £135.05 +VAT

Our Price £108.04 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 10 I/Os, local display and 240 with ladder programming control scheme lines. It is a module with rated supply voltage of 12V DC and cycle time of 6ms to 90ms. It offers 6 resistive discrete inputs with voltage of 12V DC and 4 relay outputs with voltage range from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.22kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Brand
Schneider Electric
Range
Smart Relays - Zelio Logic
Part No
SR2D101BD
Weight (kg)
0.20 kg
Type
Smart Relays - Zelio Logic
Expandable
FALSE
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
1
SIL according to IEC 61508
None
With optical interface
FALSE
Performance level acc. EN ISO 13849-1
None
Basic device
TRUE
Radio standard GPRS
FALSE
With relay output
TRUE
Height
90
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
71.2
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
59.5
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Expansion device
FALSE
With display
FALSE
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
AC/DC
With timer
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for ASI
FALSE
Supporting protocol for PROFIBUS
FALSE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Front build in possible
TRUE
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Supporting protocol for CAN
FALSE
Appendant operation agent (Ex ib)
FALSE
Degree of protection (IP)
IP20
Supporting protocol for INTERBUS
FALSE
IO link master
FALSE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
TRUE
Suitable for safety functions
FALSE
Supporting protocol for MODBUS
FALSE
Switching current
8
Number of digital outputs
4
Supporting protocol for Data-Highway
FALSE
Number of digital inputs
6
Supply voltage DC
24 V
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-232
1

Datasheet for SR2D101BD - compact smart relay Zelio Logic - 10 I O - 24 V DC - no clock - no display - Schneider Electric - SR2D101BD
