TeSys D - star delta starter - 3 x 3P (3 NO) - 18 A - 230 V AC coil - Schneider Electric - LC3D18AP7
TeSys D - star delta starter - 3 x 3P (3 NO) - 18 A - 230 V AC coil - Schneider Electric - LC3D18AP7

LC3D18AP7

TeSys D - star delta starter - 3 x 3P (3 NO) - 18 A - 230 V AC coil - Schneider Electric - LC3D18AP7

Control

List Price £596.31 +VAT

Our Price £447.23 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

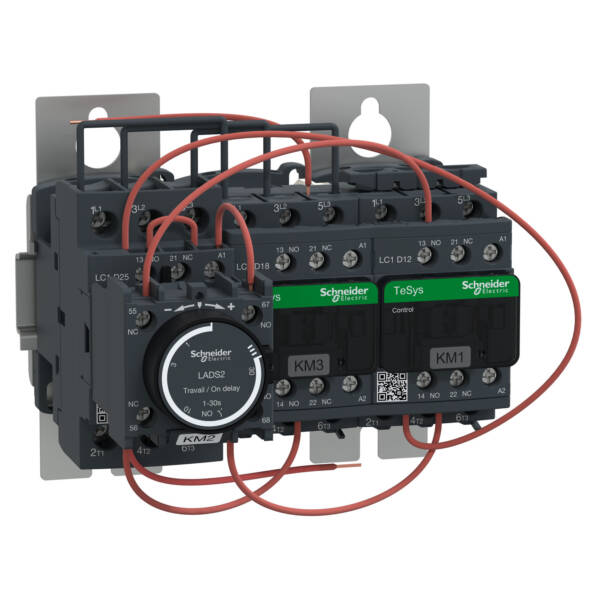

TeSys Deca pre-assembled star-delta starter, for motor control applications up to 18.5kW@400V in delta connection. Plate mounted starter, open version, composed of 3 contactors LC1D with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (144mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC3D18AP7
Weight (kg)
1.75 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
230 V
Rated control supply voltage Us at AC 60HZ
230 V
Rated operation power NEMA
7.46
Rated operation current Ie at AC-3, 400 V
18
Voltage type for actuating
AC
Degree of protection (IP)
IP20
Function
Star-delta contactor
Rated operation power at AC-3, 400 V
18.5
Degree of protection (NEMA)
Other

Datasheet for LC3D18AP7 - TeSys D - star delta starter - 3 x 3P (3 NO) - 18 A - 230 V AC coil - Schneider Electric - LC3D18AP7
