Climasys CC - electronic hygrostat - 200…240 V - Hr 20…80% - OLED screen - Schneider Electric - NSYCCOHY230VID

Climasys CC - electronic hygrostat - 200…240 V - Hr 20…80% - OLED screen - Schneider Electric - NSYCCOHY230VID

NSYCCOHY230VID

Climasys CC - electronic hygrostat - 200…240 V - Hr 20…80% - OLED screen - Schneider Electric - NSYCCOHY230VID

Enclosures

~~List Price £119.12 +VAT~~

Our Price £89.34 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

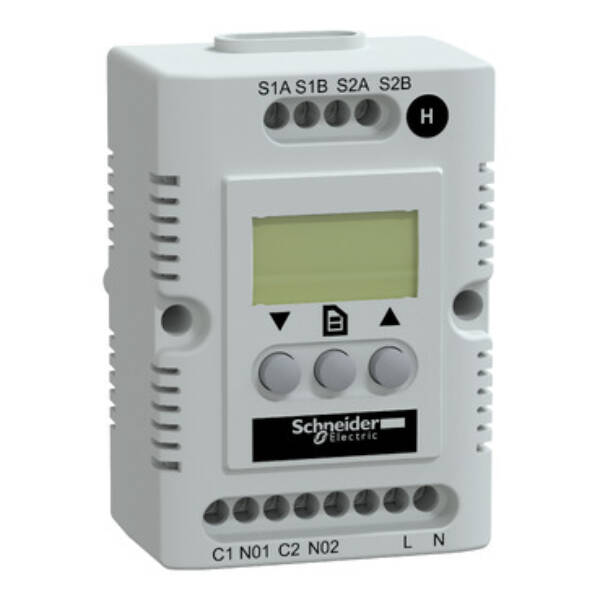

Climasys CC electronic hygrostat with OLED screen. H is 85 x W is 56 x D is 44 mm. Displays relative humidity. 6 terminals 2.5 mm² electric connection. 2 outputs heating function. Input voltage is 200 to 240V. Humidity Range is 20…80%. Hysteresis 3 %. Polycarbonate made, Self-extinguishing conforming to UL94 (material V0). Light grey. Mounting location is on mounting plate, 35 mm DIN rail, Spacial upright or Cross rails.

Brand: Schneider Electric
Range: ClimaSys CC
Part No: NSYCCOHY230VID
Weight (kg): 0.15 kg
Type: ClimaSys CC
With digital indication: TRUE
Rated voltage AC 50 Hz: 200…240 Volt
Rated voltage AC 60 Hz: 200…240 Volt
Adjustable setting value for relative air humidity: 20…80 Percentage
Temperature setting range: -40…80 Degrees celsius
Model: Hygrostat
Rated current In: 4
Mounting method: Clamp mounting
Type of switch function: Normally closed contact and normally open contact

Datasheet for NSYCCOHY230VID - Climasys CC - electronic hygrostat - 200…240 V - Hr 20…80% - OLED screen - Schneider Electric - NSYCCOHY230VID

Download
