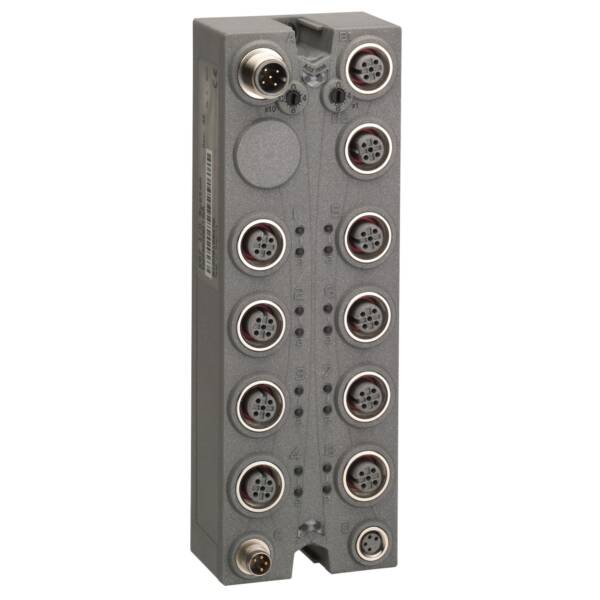

This product is part of the Modicon TM7 range, modular I/O system. This CANopen interface block provides 16 I/O blocks with positive discrete input logic and transistor discrete output. It is an interface block with a rated operational voltage of 24V DC, a discrete I/O voltage of 24V DC and a discrete input current of 4.4mA. It is an IP67 rated product. It weighs 0.32kg. This product is certified by ATEX II 3g EEx nA II T5, C-Tick, CE, CURus and GOST-R. It meets IEC 61131-2 standards. This range is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It can be fixed with screws. Dust/damp-proof and robust, the modular IO system Modicon TM7 enables connection of sensors and actuators at the heart of processes or machines in harsh environments. The Modicon TM7 CANopen interface blocks enable sensors and actuators distributed over machines to be connected via the CANopen fieldbus. These interface blocks communicate on the bus.

Brand

Schneider Electric

Range

Modicon TM7 IP67 modular I/O system

Part No

TM7NCOM16A

Weight (kg)

0.40 kg

Type

Modicon TM7 IP67 modular I/O system

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

System accessory

FALSE

With potential separation

FALSE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Fieldbus connection over separate bus coupler possible

FALSE

Height

155

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

53

Supporting protocol for EtherCAT

FALSE

Number of HW-interfaces CAN

1

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

42

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Radio standard LTE

FALSE

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Radio standard eGPRS

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for TCP/IP

FALSE

Front built-in possible

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

TRUE

Degree of protection (IP)

IP20

Appendant operation agent (Ex ib)

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for Modbus

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
