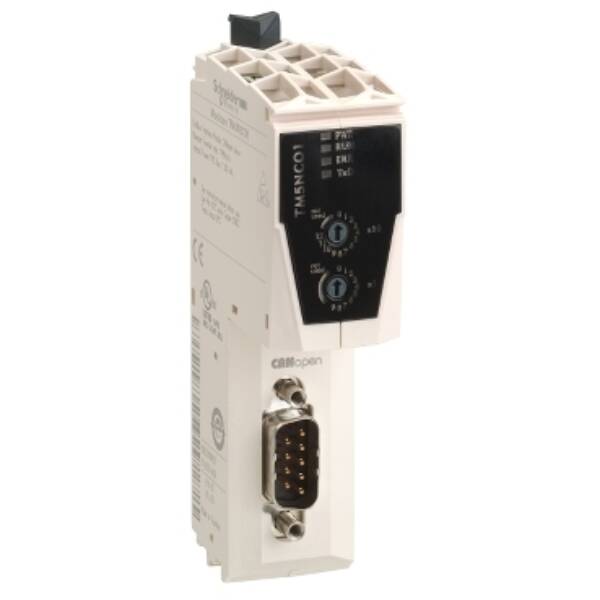

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on CANopen fieldbus, exchanging data between controller and distributed IO. Its access method is based on CSMA-MA, multi-master protocol. This is a bus coupler module designed for creating distributed IO islands on the Canopen fieldbus. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has a 9-way SUB-D connector ISO 11898, with a 10 to 1000 Kbps data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 logic controllers, Modicon LMC058/LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5NCO1

Weight (kg)

0.06 kg

Type

Modicon TM5 IP20 modular I/O system

Supporting protocol for SERCOS

FALSE

Supporting protocol for SafetyBUS p

FALSE

SIL according to IEC 61508

None

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

With potential separation

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Height

99

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

TRUE

Supporting protocol for INTERBUS-Safety

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Width

37.5

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Supporting protocol for LON

FALSE

Depth

75

Explosion safety category for gas

None

Supporting protocol for other bus systems

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for SUCONET

FALSE

Supporting protocol for Foundation Fieldbus

FALSE
