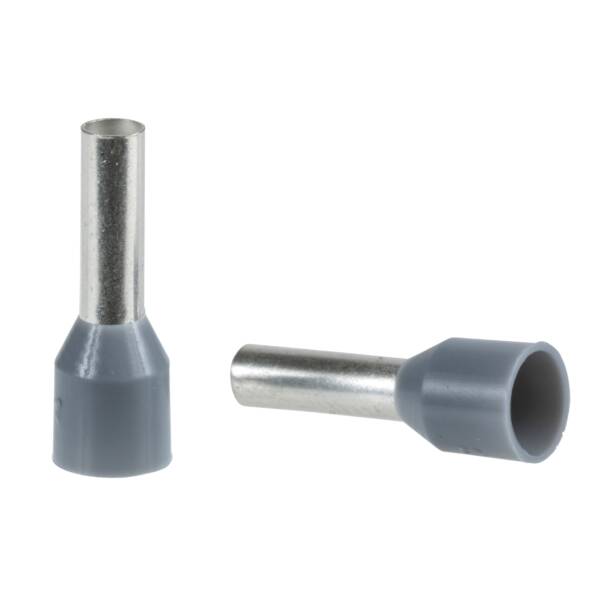

Linergy cable end Single insulated without marker tag holder. It applied to single conductor with 2.5 mm² cable cross section. It has grey surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 10 sets of 50. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Brand
Schneider Electric
Range
Linergy TR Cable ends
Part No
DZ5CEB025
Weight (kg)
0.00 kg
Type
Linergy TR Cable ends
For cables resistant to short circuit
FALSE
Colour
Grey
Surface protection
Tinned
Construction type
Standard
Insulated
TRUE
Reel packaging
FALSE
Material
Copper
Nominal cross section
2.5
Halogen free
FALSE
Sleeve length
8
Material insulation
Polyamide (PA)
With identification flag
FALSE
AWG size
14
Datasheet for DZ5CEB025 - CABLE END BAND 2.5MM2 - - Schneider Electric - DZ5CEB025
